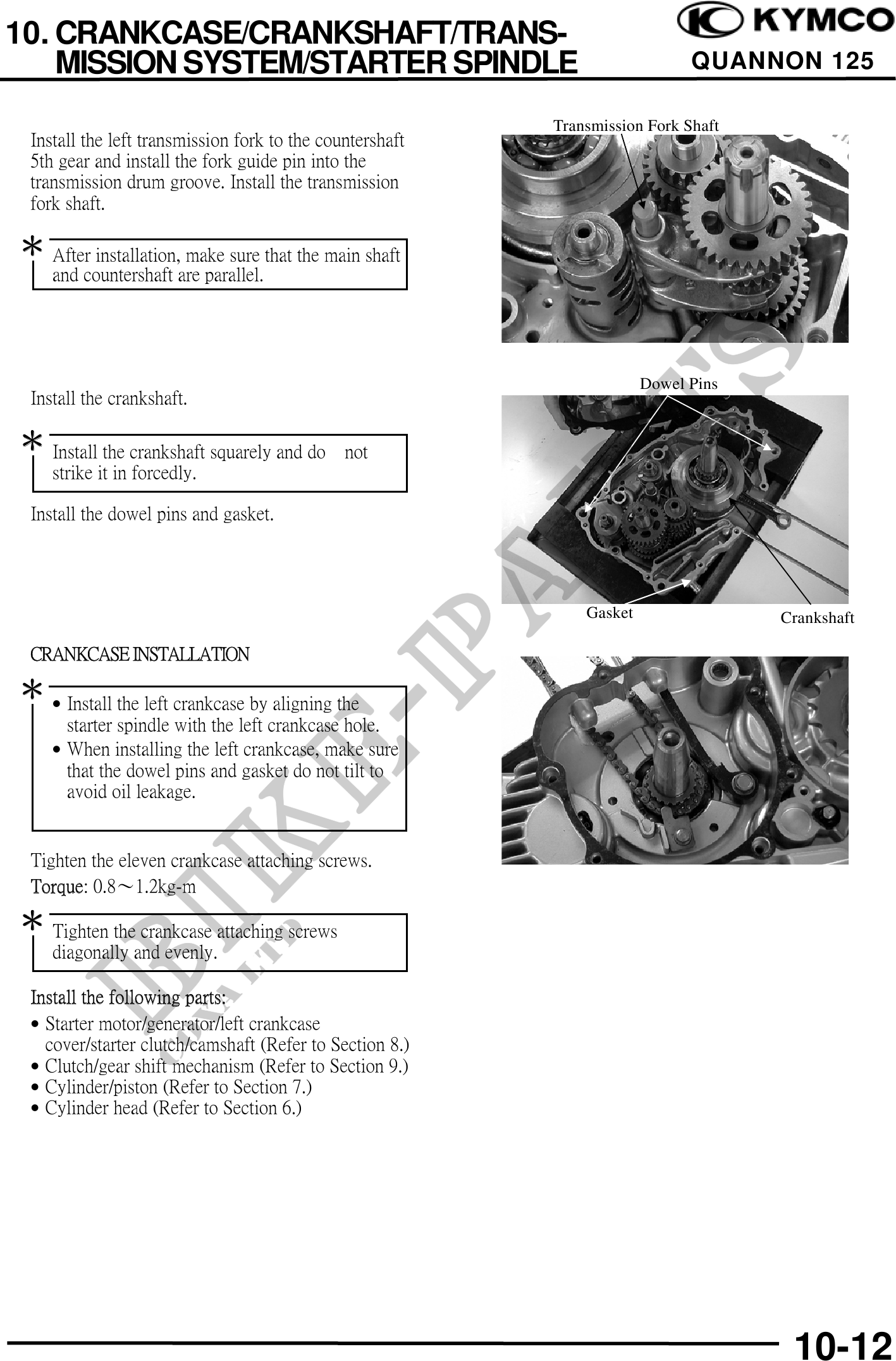

10. CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE QUANNON 125
Transmission Fork Shaft
Install the left transmission fork to the countershaft
5th gear and install the fork guide pin into the
transmission drum groove. Install the transmission
fork shaft.
After installation, make sure that the main shaft
and countershaft are parallel.
Dowel Pins
Install the crankshaft.
Install the crankshaft squarely and do not
strike it in forcedly.
Install the dowel pins and gasket.
Gasket Crankshaft
CRANKCASE INSTALLATION
· Install the left crankcase by aligning the
starter spindle with the left crankcase hole.
· When installing the left crankcase, make sure
that the dowel pins and gasket do not tilt to
avoid oil leakage.
Tighten the eleven crankcase attaching screws.
Torque: 0.81.2kg-m
Tighten the crankcase attaching screws
diagonally and evenly.
Install the following parts:
· Starter motor/generator/left crankcase
cover/starter clutch/camshaft (Refer to Section 8.)
· Clutch/gear shift mechanism (Refer to Section 9.)
· Cylinder/piston (Refer to Section 7.)
· Cylinder head (Refer to Section 6.)
10-12
