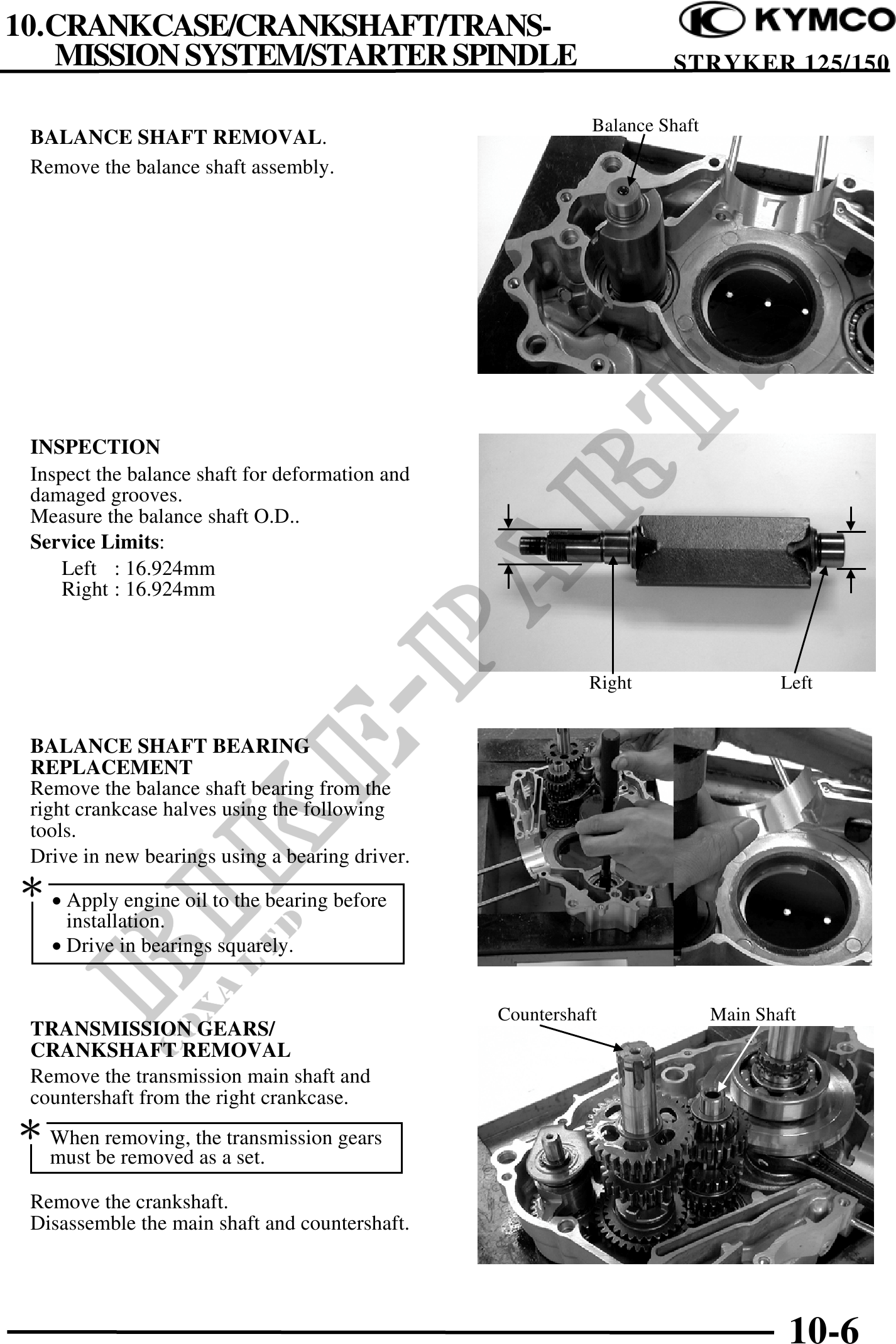

10.CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE STRYKER 125/150
Balance Shaft
BALANCE SHAFT REMOVAL.
Remove the balance shaft assembly.
INSPECTION
Inspect the balance shaft for deformation and
damaged grooves.
Measure the balance shaft O.D..
Service Limits:
Left : 16.924mm
Right : 16.924mm
Right Left
BALANCE SHAFT BEARING
REPLACEMENT
Remove the balance shaft bearing from the
right crankcase halves using the following
tools.
Drive in new bearings using a bearing driver.
· Apply engine oil to the bearing before
installation.
· Drive in bearings squarely.
Countershaft Main Shaft
TRANSMISSION GEARS/
CRANKSHAFT REMOVAL
Remove the transmission main shaft and
countershaft from the right crankcase.
When removing, the transmission gears
must be removed as a set.
Remove the crankshaft.
Disassemble the main shaft and countershaft.
10-6
