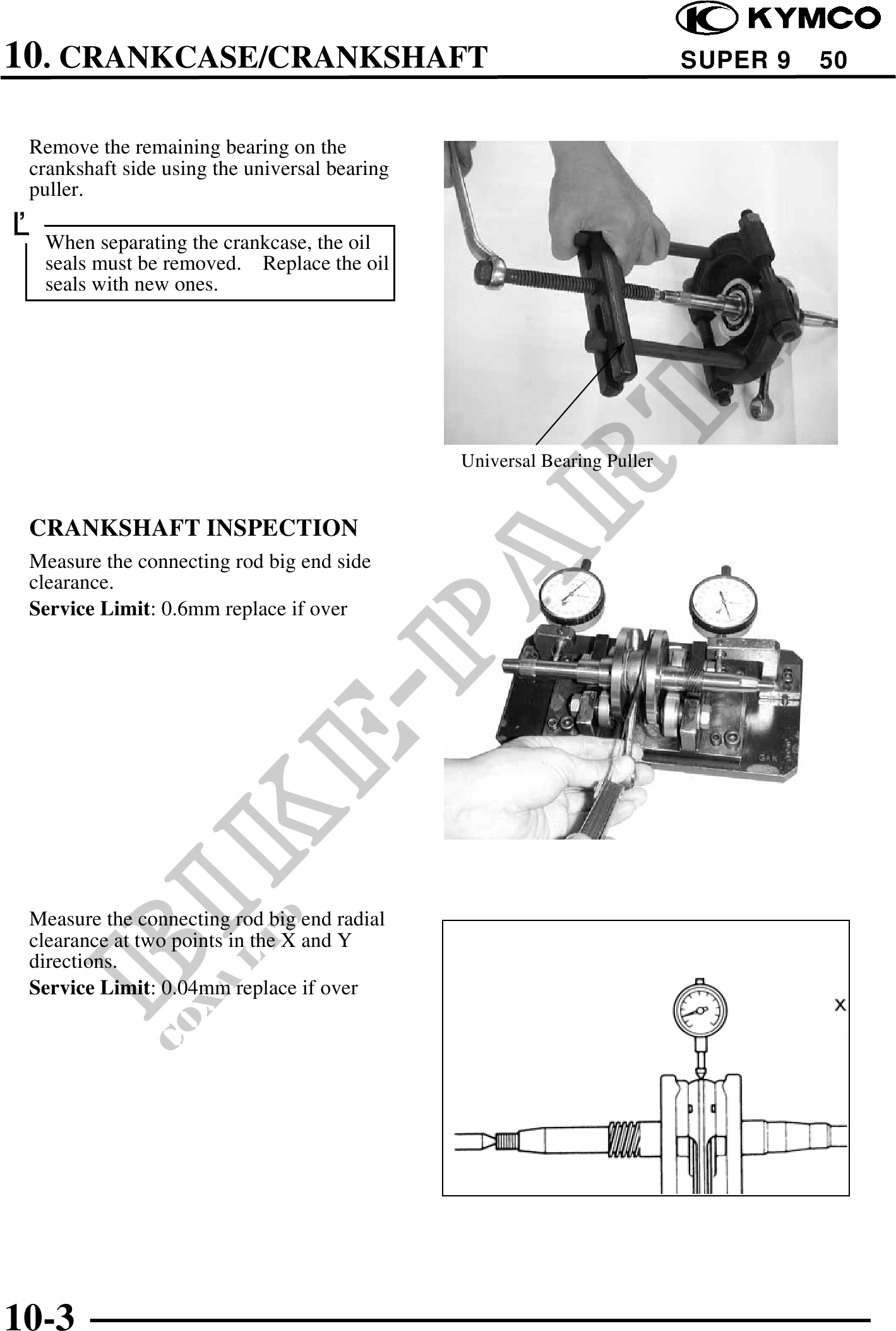

10. CRANKCASE/CRANKSHAFT SUPER 9 50
Remove the remaining bearing on the
crankshaft side using the universal bearing
puller.
When separating the crankcase, the oil
seals must be removed. Replace the oil
seals with new ones.
Universal Bearing Puller
CRANKSHAFT INSPECTION
Measure the connecting rod big end side
clearance.
Service Limit: 0.6mm replace if over
Measure the connecting rod big end radial
clearance at two points in the X and Y
directions.
Service Limit: 0.04mm replace if over
10-3
