6. CYLINDER HEAD/CYLINDER/PISTON SUPER 9 50

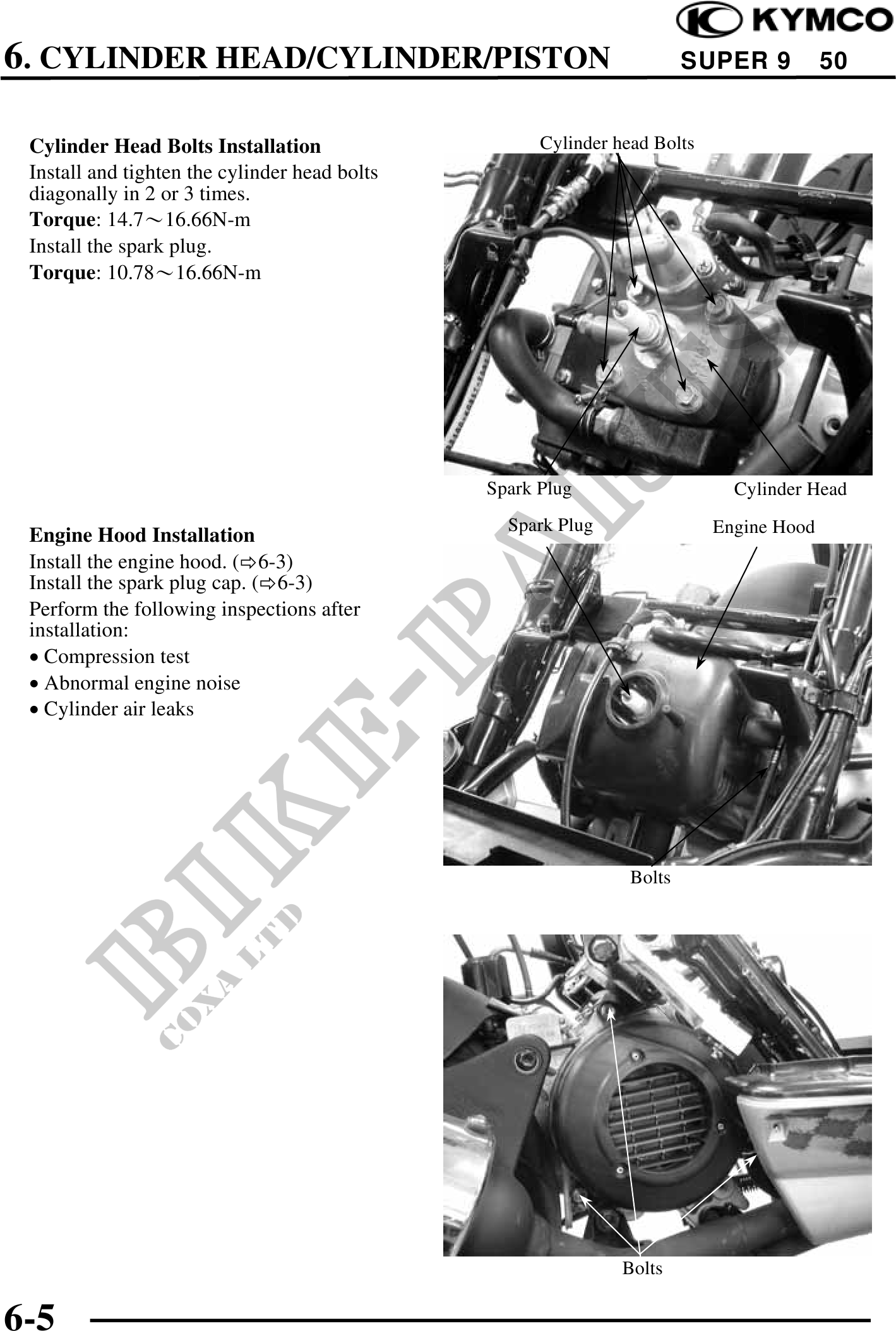

Cylinder Head Bolts Installation Cylinder head Bolts
Install and tighten the cylinder head bolts
diagonally in 2 or 3 times.
Torque: 14.716.66N-m
Install the spark plug.
Torque: 10.7816.66N-m
Spark Plug Cylinder Head
Spark Plug Engine Hood
Engine Hood Installation
Install the engine hood. ( 6-3)
Install the spark plug cap. ( 6-3)
Perform the following inspections after
installation:
· Compression test
· Abnormal engine noise
· Cylinder air leaks
