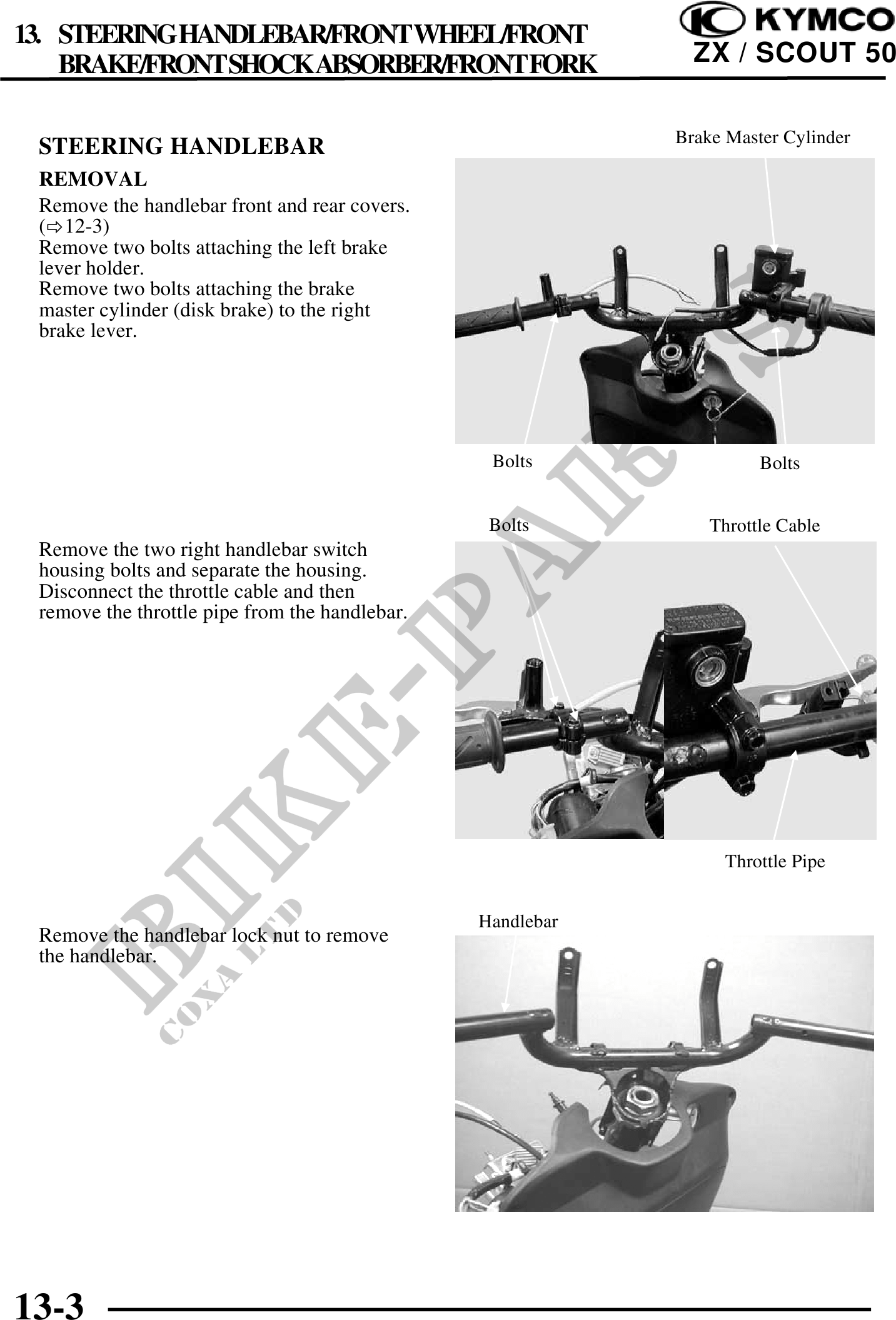

STEERING HANDLEBAR
REMOVAL
Remove the handlebar front and rear covers.
( 12-3)
Remove two bolts attaching the left brake
lever holder.
Remove two bolts attaching the brake
master cylinder (disk brake) to the right
brake lever.
Bolts Bolts
Bolts Throttle Cable
Remove the two right handlebar switch
housing bolts and separate the housing.
Disconnect the throttle cable and then
remove the throttle pipe from the handlebar.
Throttle Pipe
Handlebar
Remove the handlebar lock nut to remove
the handlebar.
