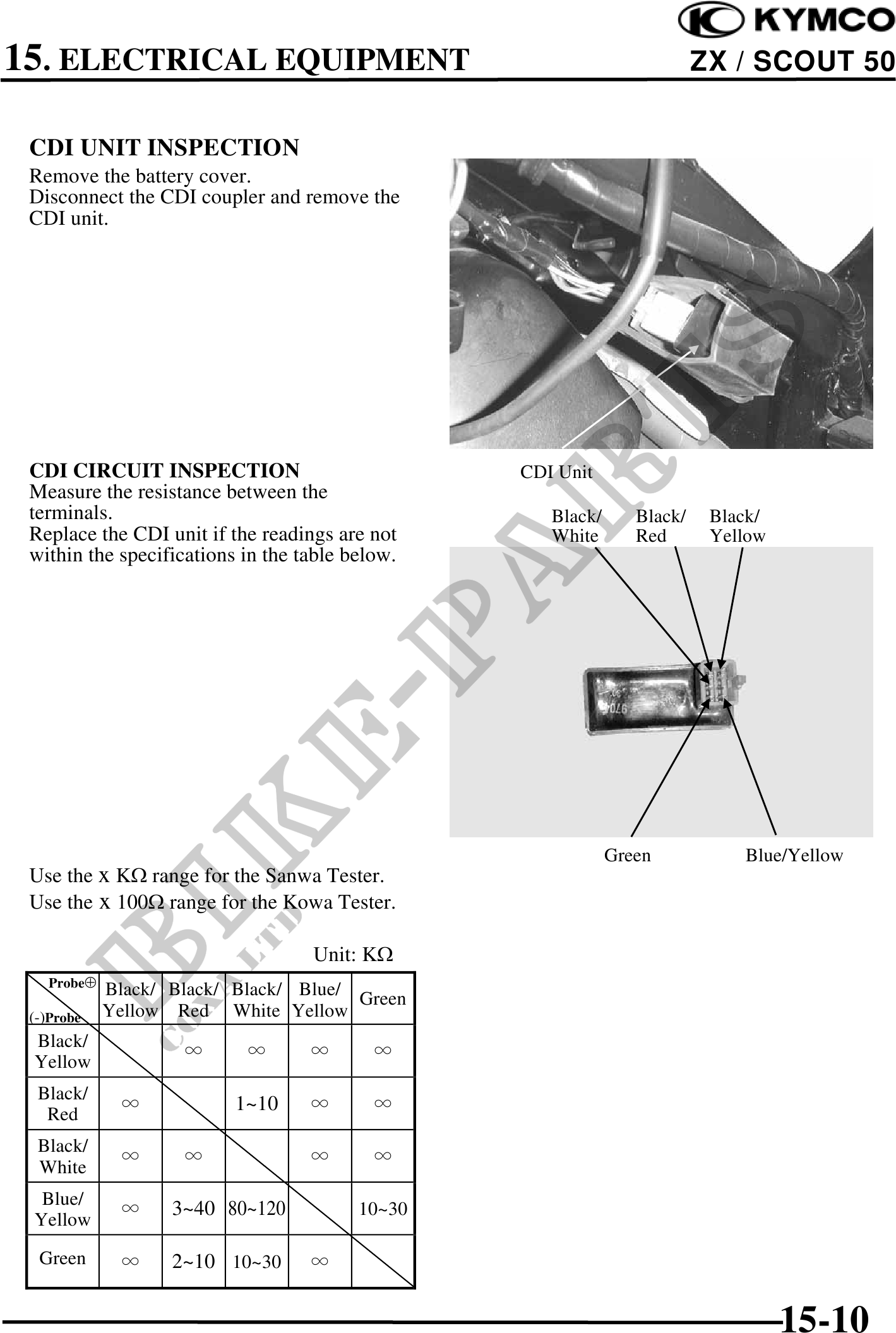

15. ELECTRICAL EQUIPMENT ZX / SCOUT 50
CDI UNIT INSPECTION
Remove the battery cover. Coupler
Disconnect the CDI coupler and remove the
CDI unit.
CDI CIRCUIT INSPECTION CDI Unit
Measure the resistance between the
terminals. Black/ Black/ Black/
Replace the CDI unit if the readings are not White Red Yellow
within the specifications in the table below.
Green Blue/Yellow
Use the x K range for the Sanwa Tester.
Use the x 100 range for the Kowa Tester.
Unit: K
Probe
Black/ Black/ Black/ Blue/ Green
(-)Probe Yellow Red White Yellow
Black/
Yellow
Black/
1~10
Red
Black/
White
Blue/
3~40 80~120 10~30
Yellow
Green 2~10 10~30
15-10
