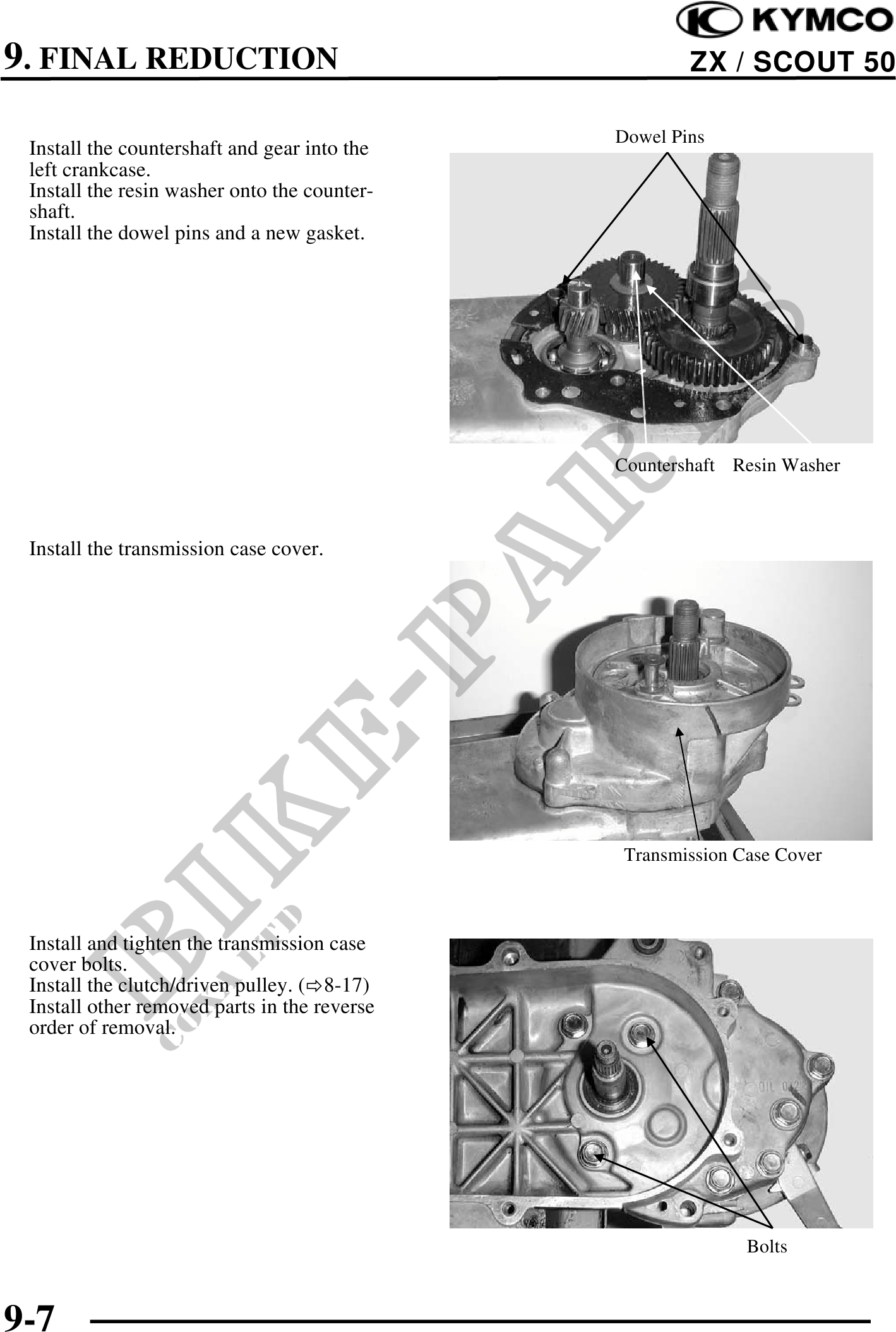

9. FINAL REDUCTION ZX / SCOUT 50
Dowel Pins
Install the countershaft and gear into the
left crankcase.
Install the resin washer onto the counter-
shaft.
Install the dowel pins and a new gasket.
Countershaft Resin Washer
Install the transmission case cover.
Transmission Case Cover
Install and tighten the transmission case
cover bolts.
Install the clutch/driven pulley. ( 8-17)
Install other removed parts in the reverse
order of removal.
Bolts
9-7
