20. LIGHTS/METERS/SWITCHES DOWNTOWN 125i

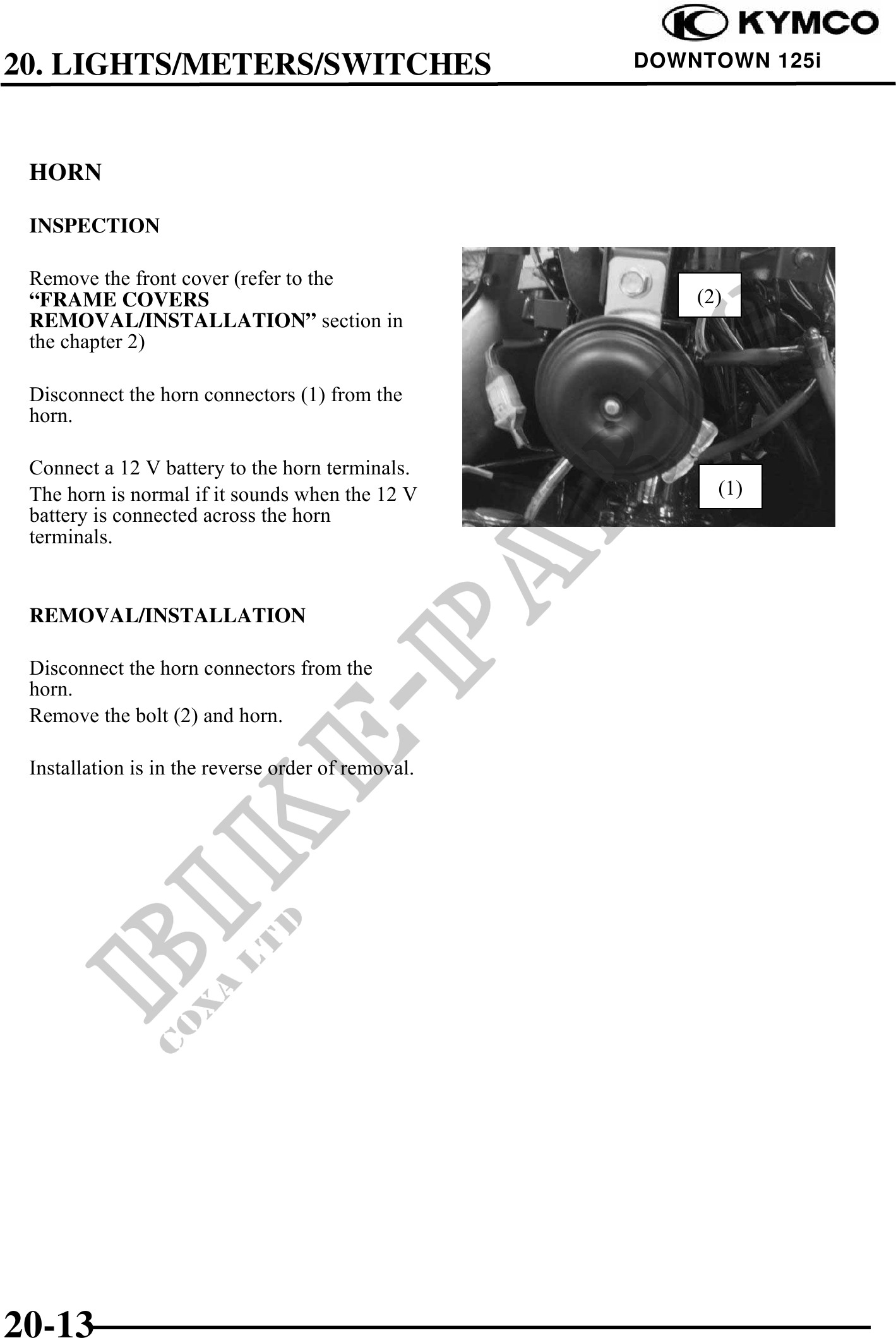

HORN
INSPECTION
Remove the front cover (refer to the
"FRAME COVERS (2)
REMOVAL/INSTALLATION" section in
the chapter 2)
Disconnect the horn connectors (1) from the
horn.
Connect a 12 V battery to the horn terminals.
The horn is normal if it sounds when the 12 V (1)
battery is connected across the horn
terminals.
REMOVAL/INSTALLATION
Disconnect the horn connectors from the
horn.
Remove the bolt (2) and horn.
Installation is in the reverse order of removal.
20-13
