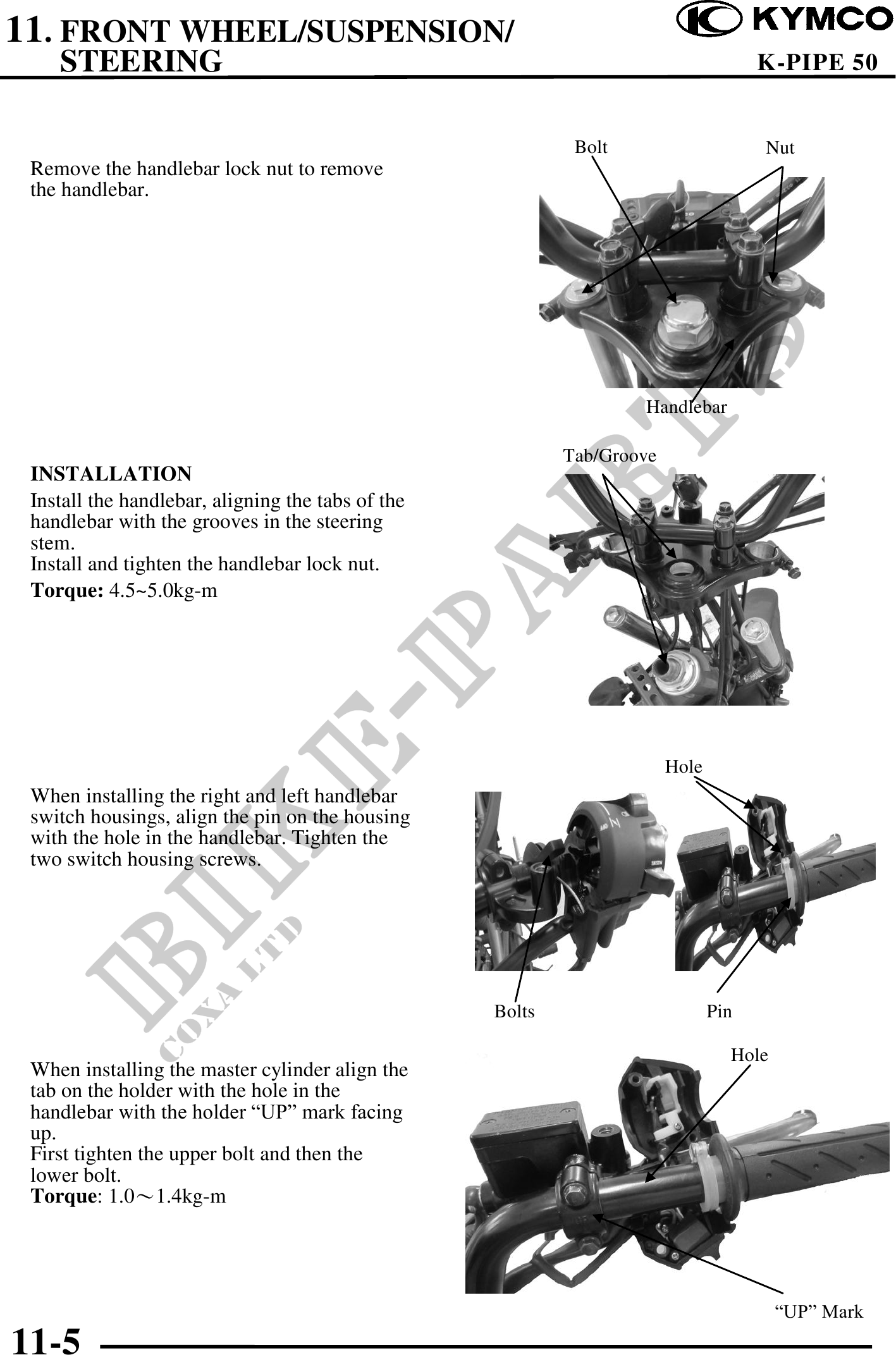

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                                         K-PIPE 50


                                                            Bolt                     Nut
 Remove the handlebar lock nut to remove
 the handlebar.




                                                                   Handlebar

                                                           Tab/Groove
 INSTALLATION
 Install the handlebar, aligning the tabs of the
 handlebar with the grooves in the steering
 stem.
 Install and tighten the handlebar lock nut.
 Torque: 4.5~5.0kg-m




                                                                        Hole
 When installing the right and left handlebar
 switch housings, align the pin on the housing
 with the hole in the handlebar. Tighten the
 two switch housing screws.




                                                   Bolts                       Pin

                                                                                 Hole
 When installing the master cylinder align the
 tab on the holder with the hole in the
 handlebar with the holder "UP" mark facing
 up.
 First tighten the upper bolt and then the
 lower bolt.
 Torque: 1.01.4kg-m




                                                                                        "UP" Mark
11-5
