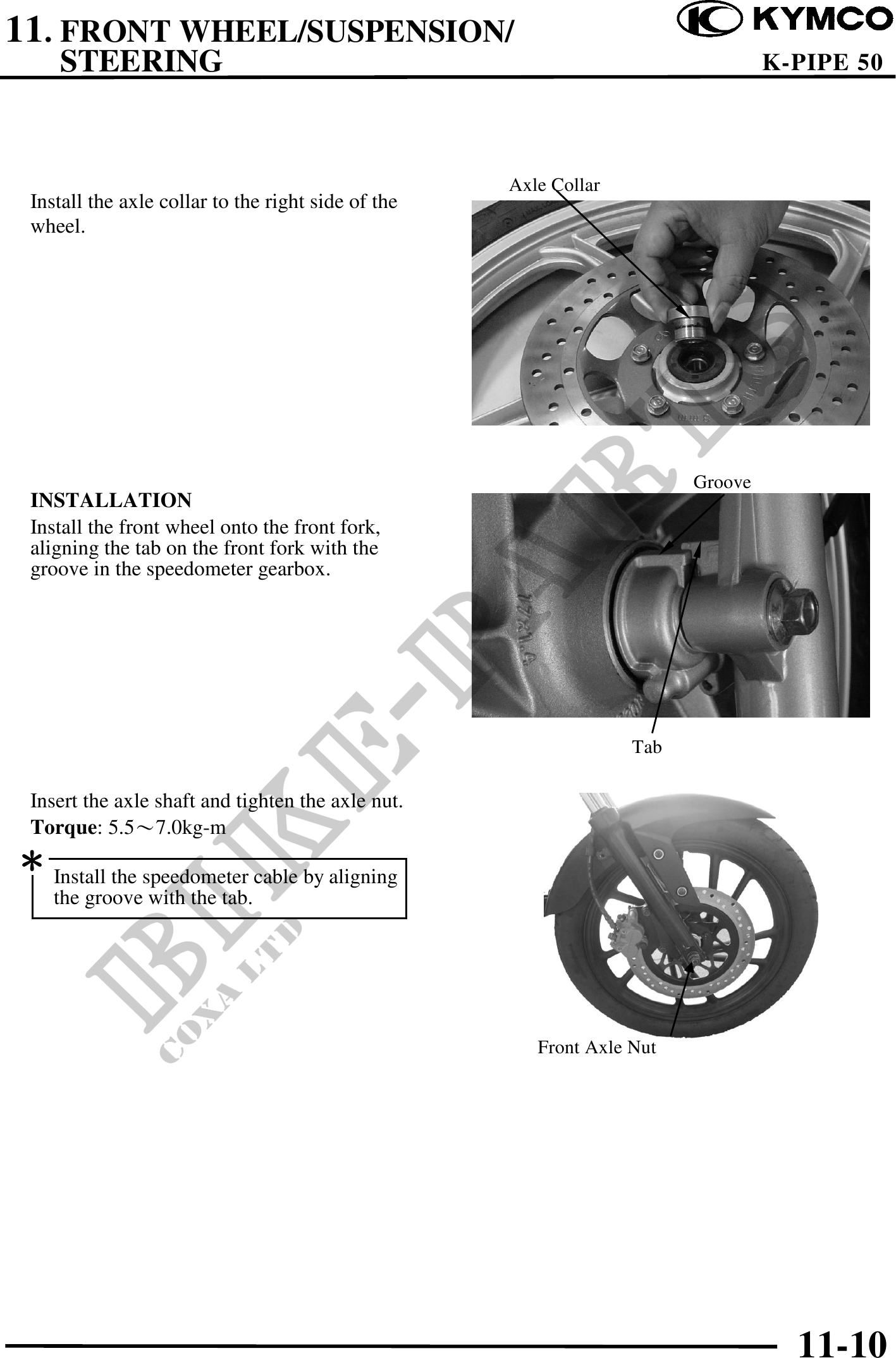

11. FRONT WHEEL/SUSPENSION/
STEERING K-PIPE 50
Axle Collar
Install the axle collar to the right side of the
wheel.
Groove
INSTALLATION
Install the front wheel onto the front fork,
aligning the tab on the front fork with the
groove in the speedometer gearbox.
Tab
Insert the axle shaft and tighten the axle nut.
Torque: 5.57.0kg-m
Install the speedometer cable by aligning
the groove with the tab.
Front Axle Nut
