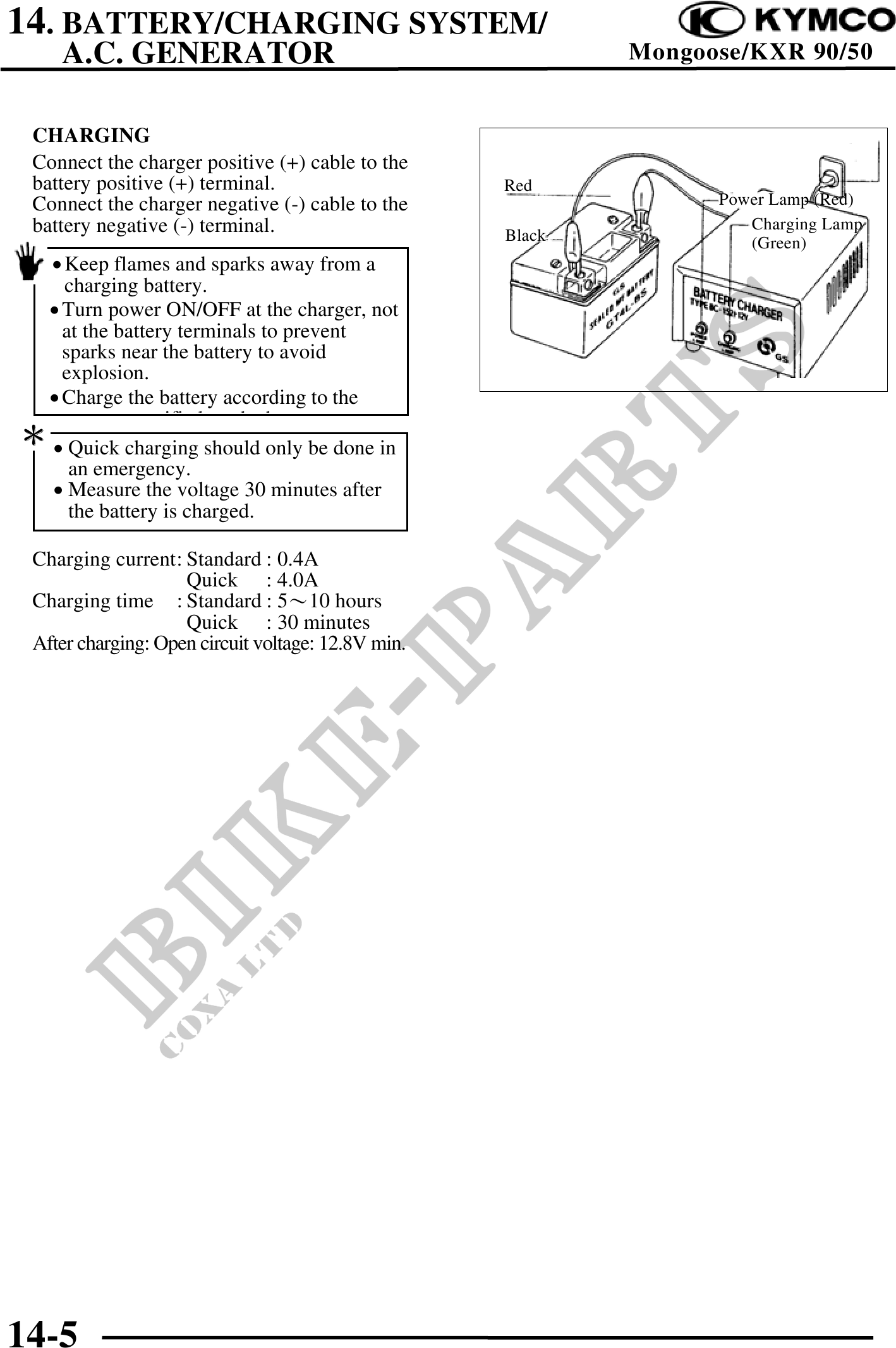

14. BATTERY/CHARGING SYSTEM/ A.C. GENERATOR Mongoose/KXR 90/50 CHARGING Connect the charger positive (+) cable to the battery positive (+) terminal. Red Connect the charger negative (-) cable to the Power Lamp (Red) battery negative (-) terminal. Charging Lamp Black (Green) · Keep flames and sparks away from a charging battery. · Turn power ON/OFF at the charger, not at the battery terminals to prevent sparks near the battery to avoid explosion. · Charge the battery according to the ifi d h b · Quick charging should only be done in an emergency. · Measure the voltage 30 minutes after the battery is charged. Charging current: Standard : 0.4A Quick : 4.0A Charging time : Standard : 510 hours Quick : 30 minutes After charging: Open circuit voltage: 12.8V min. 14-5
