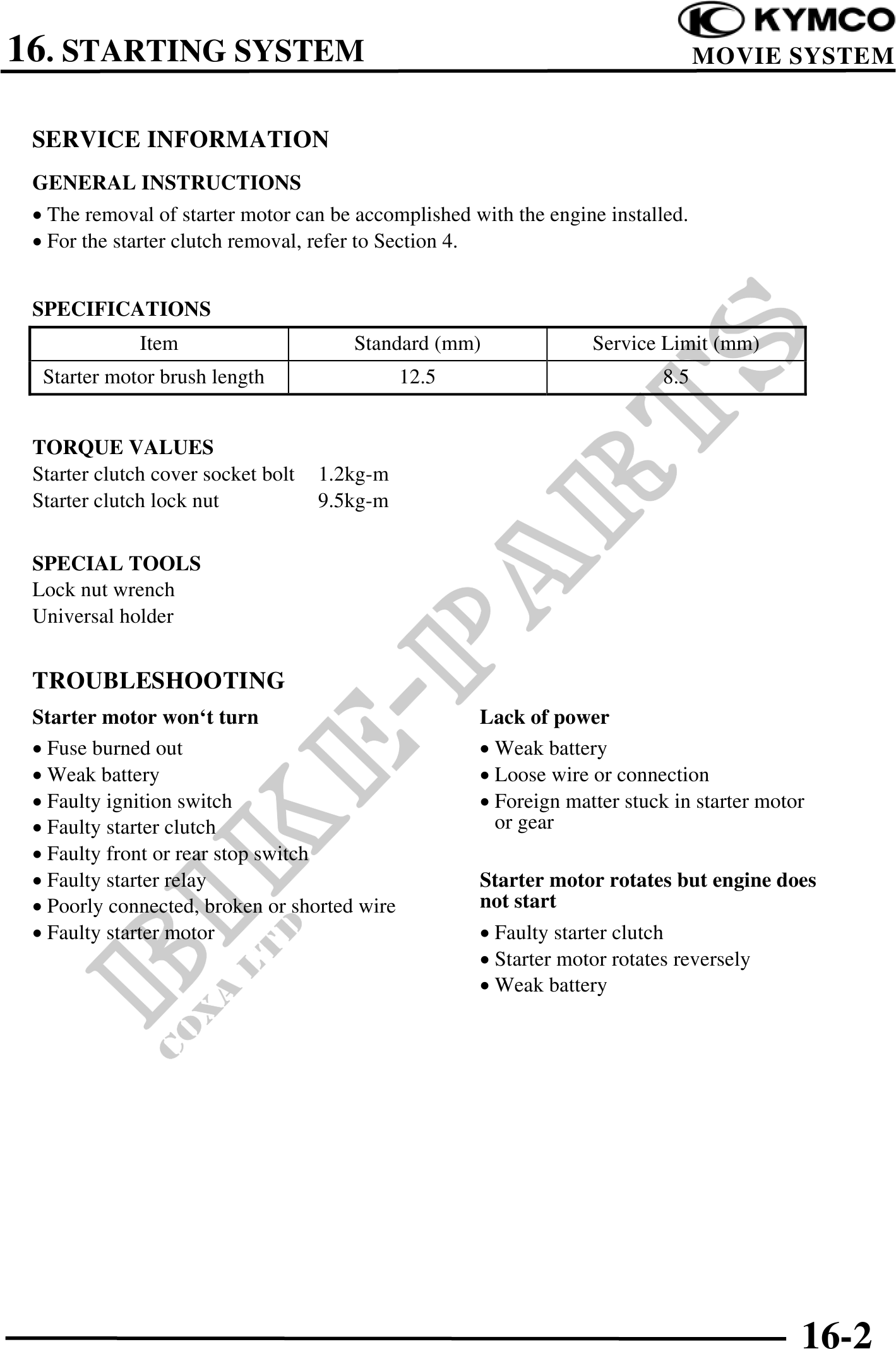

16. STARTING SYSTEM MOVIE SYSTEM SERVICE INFORMATION GENERAL INSTRUCTIONS · The removal of starter motor can be accomplished with the engine installed. · For the starter clutch removal, refer to Section 4. SPECIFICATIONS Item Standard (mm) Service Limit (mm) Starter motor brush length 12.5 8.5 TORQUE VALUES Starter clutch cover socket bolt 1.2kg-m Starter clutch lock nut 9.5kg-m SPECIAL TOOLS Lock nut wrench Universal holder TROUBLESHOOTING Starter motor won`t turn Lack of power · Fuse burned out · Weak battery · Weak battery · Loose wire or connection · Faulty ignition switch · Foreign matter stuck in starter motor · Faulty starter clutch or gear · Faulty front or rear stop switch · Faulty starter relay Starter motor rotates but engine does · Poorly connected, broken or shorted wire not start · Faulty starter motor · Faulty starter clutch · Starter motor rotates reversely · Weak battery 16-2
