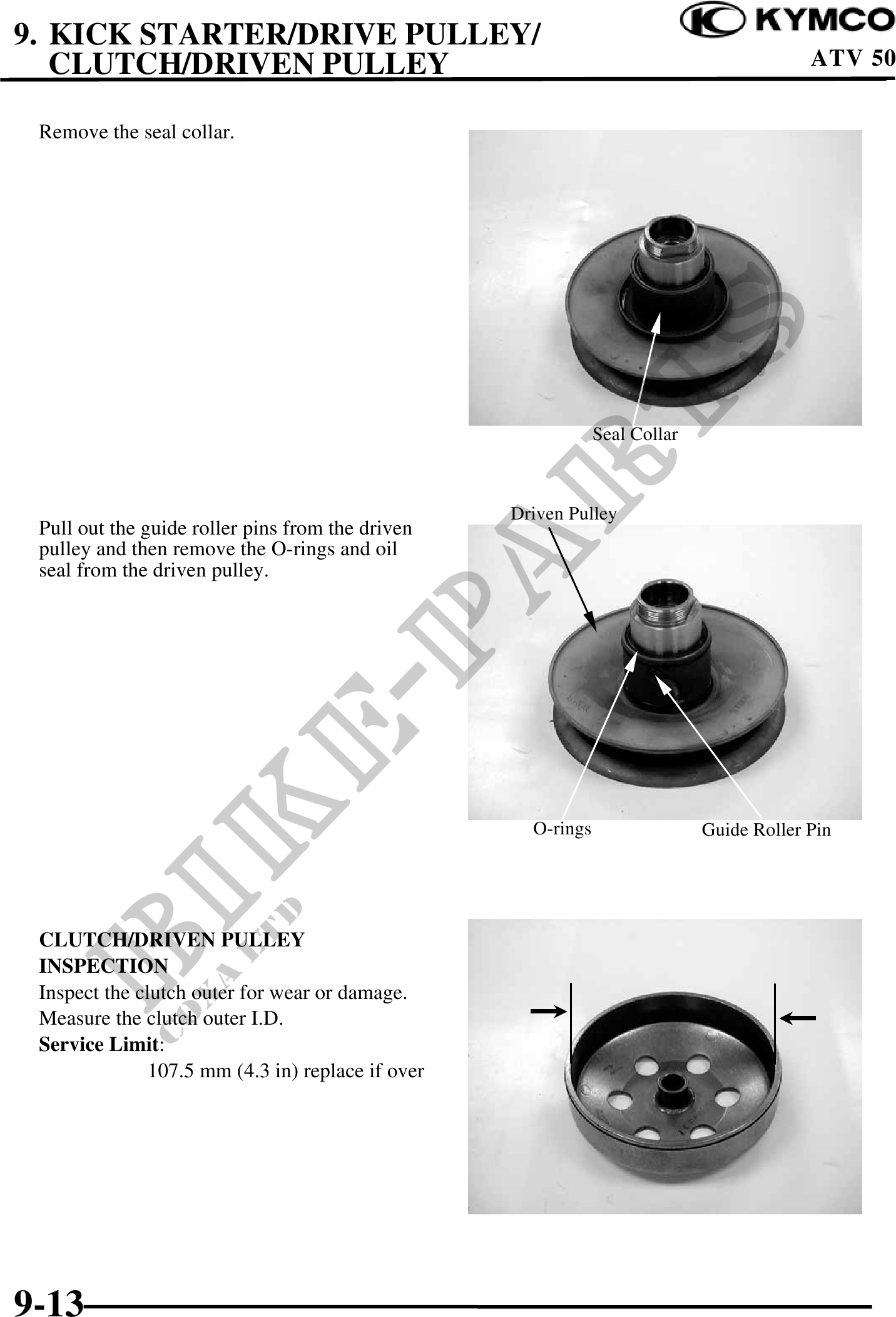

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
Remove the seal collar.
Seal Collar
Driven Pulley
Pull out the guide roller pins from the driven
pulley and then remove the O-rings and oil
seal from the driven pulley.
O-rings Guide Roller Pin
CLUTCH/DRIVEN PULLEY
INSPECTION
Inspect the clutch outer for wear or damage.
Measure the clutch outer I.D.
Service Limit:
107.5 mm (4.3 in) replace if over
