11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50

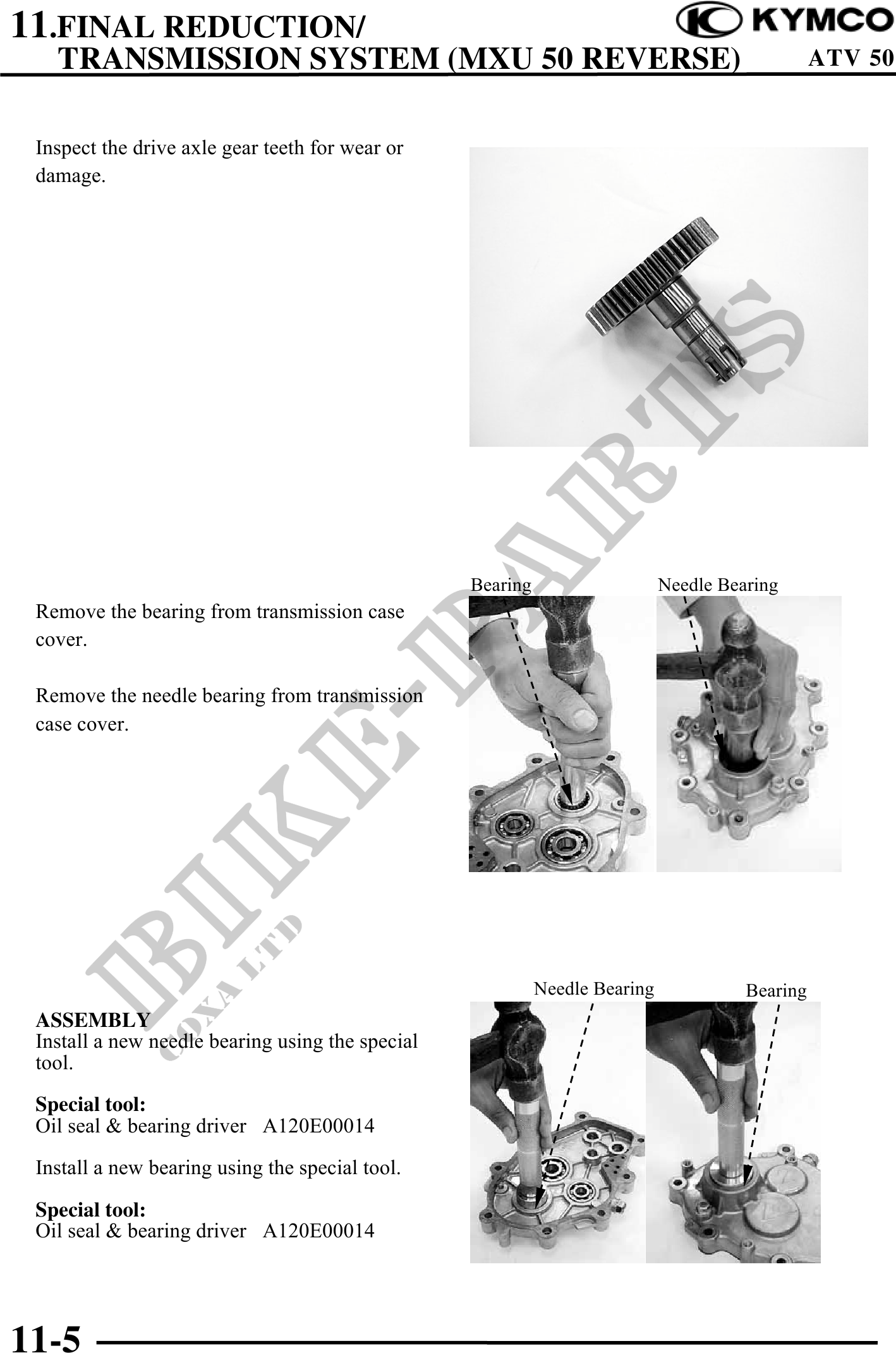

Inspect the drive axle gear teeth for wear or
damage.
Bearing Needle Bearing
Remove the bearing from transmission case
cover.
Remove the needle bearing from transmission
case cover.
Needle Bearing Bearing
ASSEMBLY
Install a new needle bearing using the special
tool.
Special tool:
Oil seal & bearing driver A120E00014
Install a new bearing using the special tool.
Special tool:
Oil seal & bearing driver A120E00014
