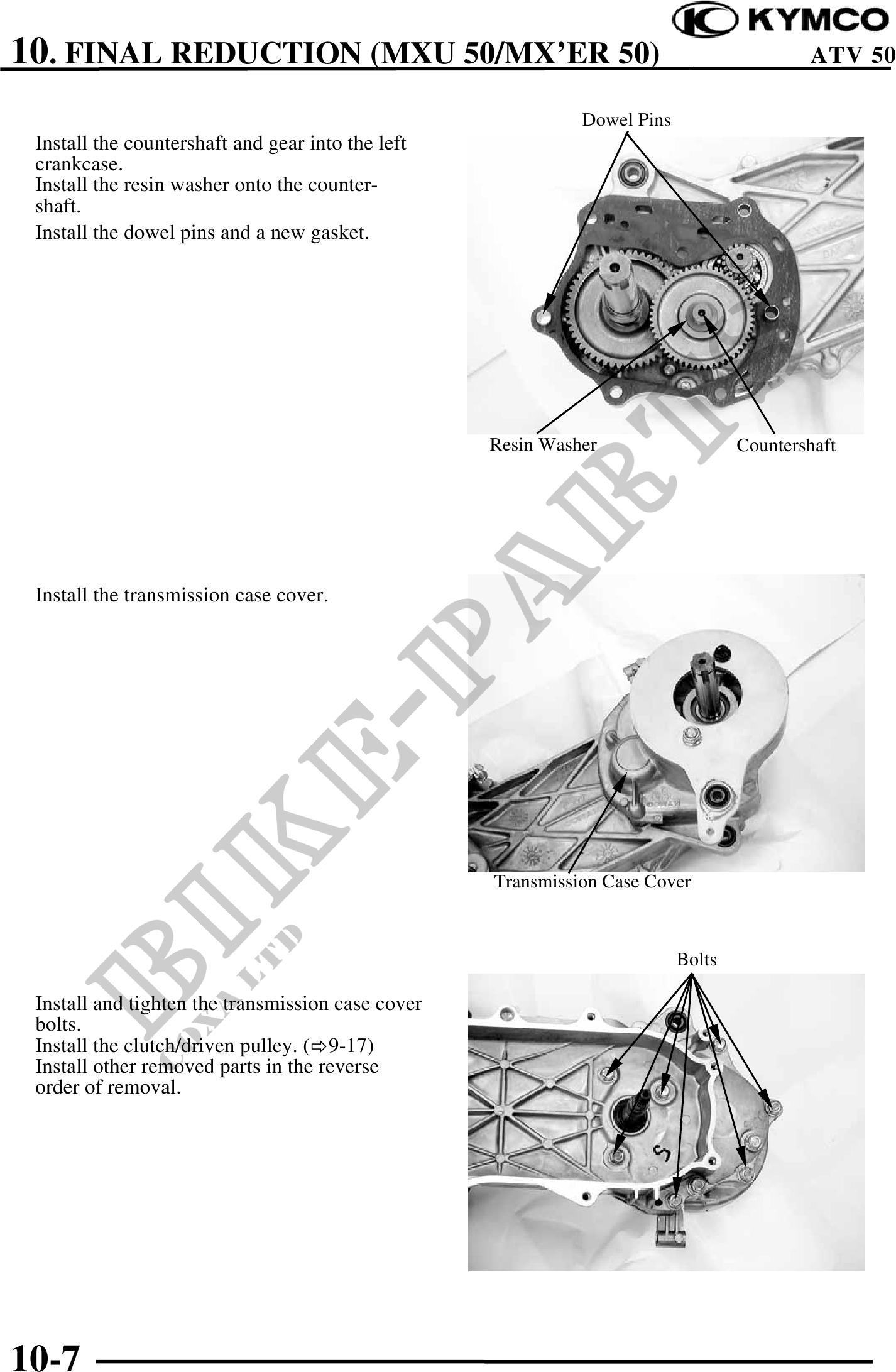

10. FINAL REDUCTION (MXU 50/MX'ER 50) ATV 50
Dowel Pins
Install the countershaft and gear into the left
crankcase.
Install the resin washer onto the counter-
shaft.
Install the dowel pins and a new gasket.
Resin Washer Countershaft
Install the transmission case cover.
Transmission Case Cover
Bolts
Install and tighten the transmission case cover
bolts.
Install the clutch/driven pulley. ( 9-17)
Install other removed parts in the reverse
order of removal.
10-7
