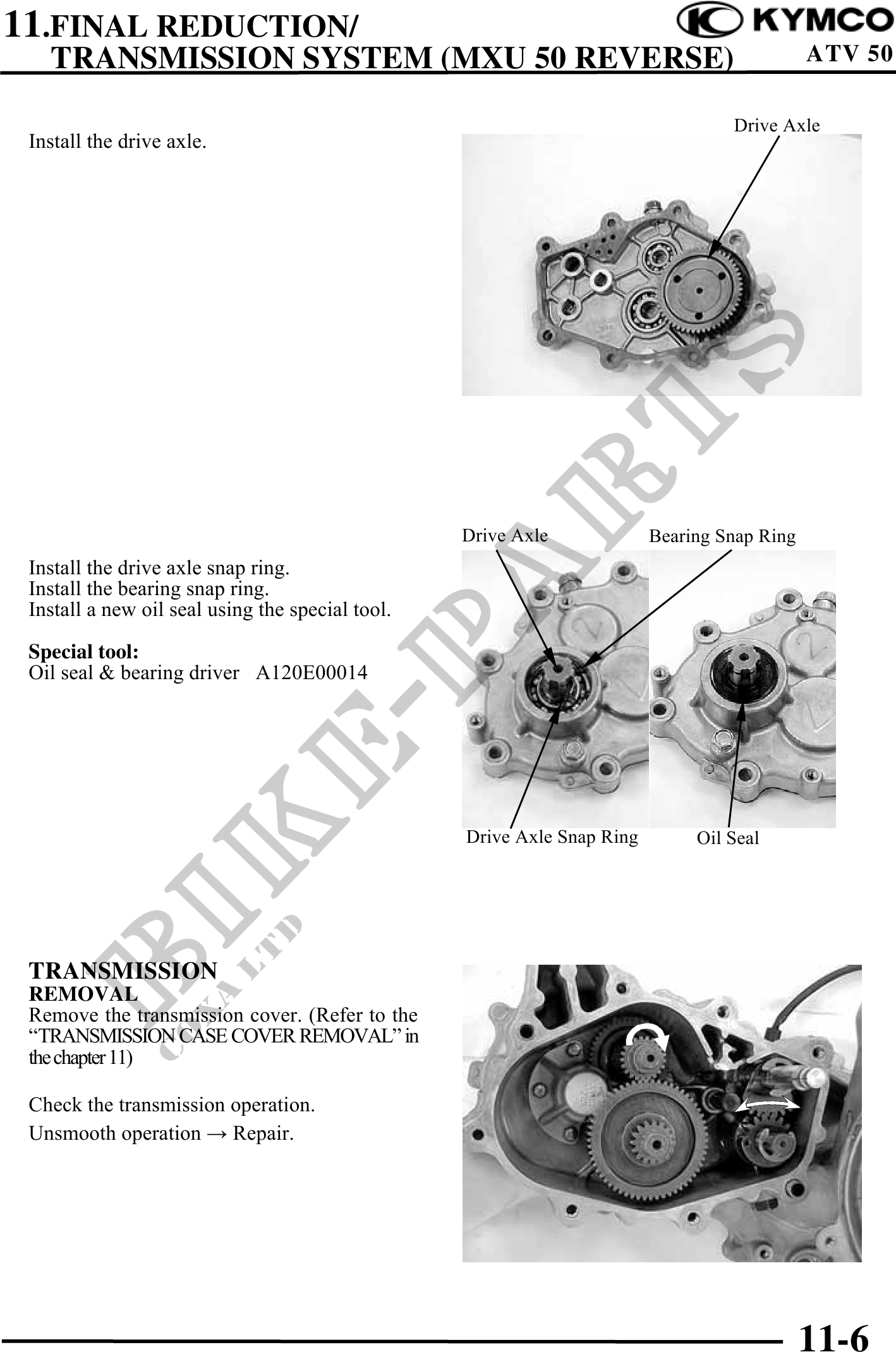

11.FINAL REDUCTION/ TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50 Drive Axle Install the drive axle. Drive Axle Bearing Snap Ring Install the drive axle snap ring. Install the bearing snap ring. Install a new oil seal using the special tool. Special tool: Oil seal & bearing driver A120E00014 Drive Axle Snap Ring Oil Seal TRANSMISSION REMOVAL Remove the transmission cover. (Refer to the "TRANSMISSION CASE COVER REMOVAL" in the chapter 11) Check the transmission operation. Unsmooth operation Repair. 11-6
