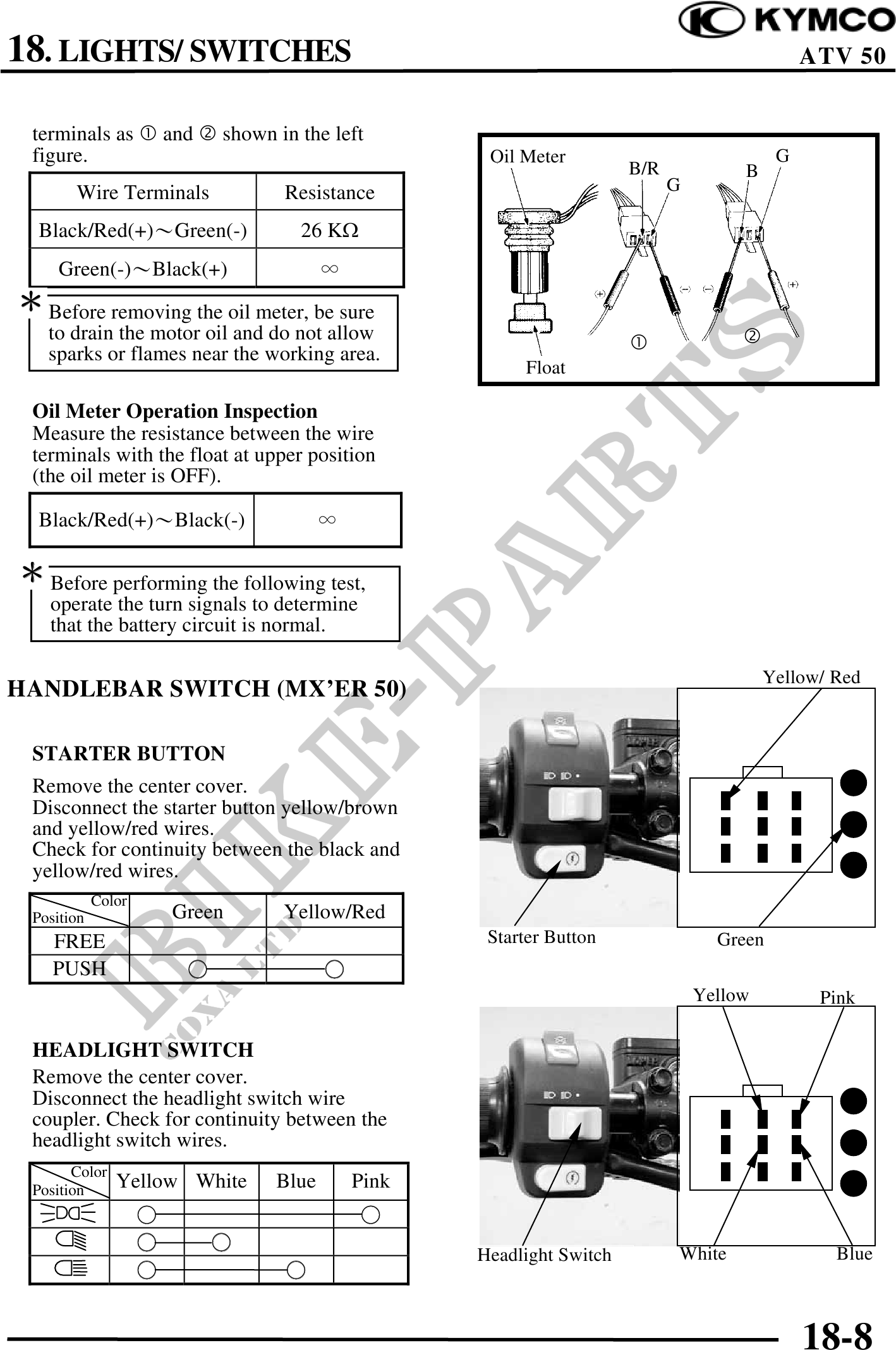

18. LIGHTS/ SWITCHES ATV 50 terminals as and shown in the left figure. Oil Meter G B/R B Wire Terminals Resistance G Black/Red(+)Green(-) 26 K Green(-)Black(+) Before removing the oil meter, be sure to drain the motor oil and do not allow sparks or flames near the working area. Float Oil Meter Operation Inspection Measure the resistance between the wire terminals with the float at upper position (the oil meter is OFF). Black/Red(+)Black(-) Before performing the following test, operate the turn signals to determine that the battery circuit is normal. Yellow/ Red HANDLEBAR SWITCH (MX'ER 50) STARTER BUTTON Remove the center cover. Disconnect the starter button yellow/brown and yellow/red wires. Check for continuity between the black and yellow/red wires. Color Position Green Yellow/Red FREE Starter Button Green PUSH Yellow Pink HEADLIGHT SWITCH Remove the center cover. Disconnect the headlight switch wire coupler. Check for continuity between the headlight switch wires. Color Position Yellow White Blue Pink Headlight Switch White Blue 18-8
