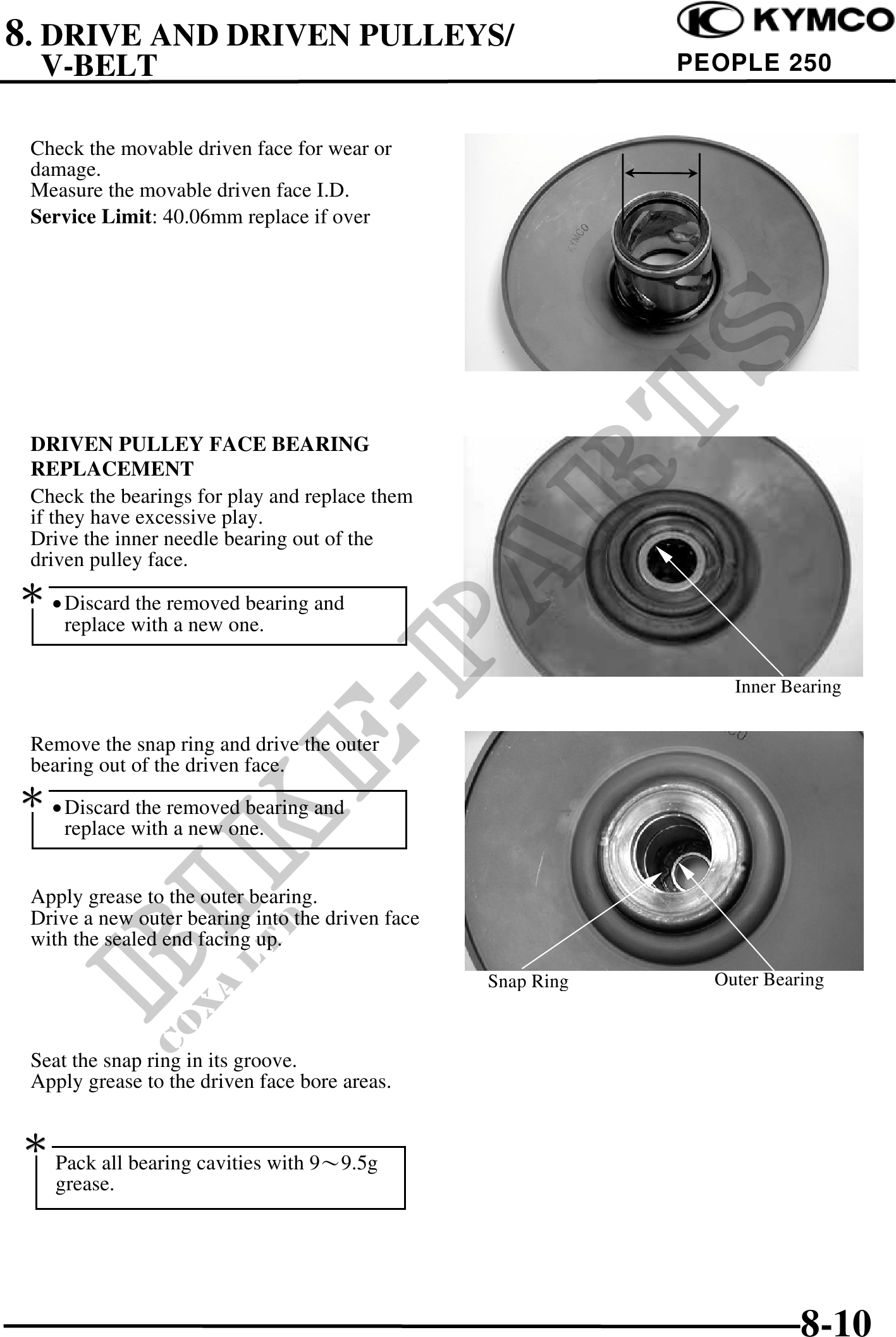

8. DRIVE AND DRIVEN PULLEYS/ V-BELT PEOPLE 250 Check the movable driven face for wear or damage. Measure the movable driven face I.D. Service Limit: 40.06mm replace if over DRIVEN PULLEY FACE BEARING REPLACEMENT Check the bearings for play and replace them if they have excessive play. Drive the inner needle bearing out of the driven pulley face. · Discard the removed bearing and replace with a new one. Inner Bearing Remove the snap ring and drive the outer bearing out of the driven face. · Discard the removed bearing and replace with a new one. Apply grease to the outer bearing. Drive a new outer bearing into the driven face with the sealed end facing up. Snap Ring Outer Bearing Seat the snap ring in its groove. Apply grease to the driven face bore areas. Pack all bearing cavities with 99.5g grease. 8-10
