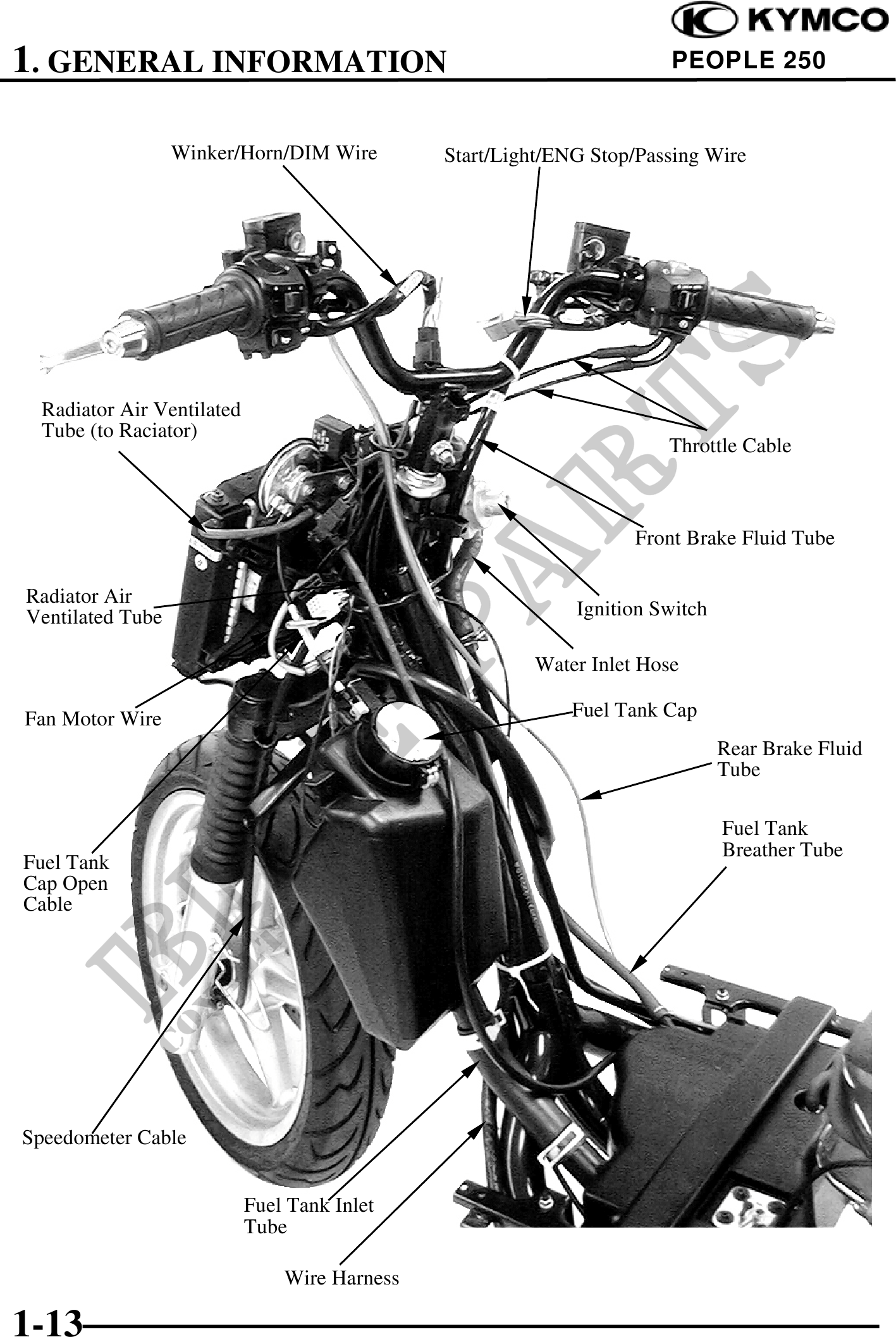

          1. GENERAL INFORMATION                                                 PEOPLE 250


                  Winker/Horn/DIM Wire         Start/Light/ENG Stop/Passing Wire




  Radiator Air Ventilated
  Tube (to Raciator)
                                                                       Throttle Cable



                                                                   Front Brake Fluid Tube

Radiator Air
Ventilated Tube                                              Ignition Switch

                                                        Water Inlet Hose

Fan Motor Wire                                              Fuel Tank Cap
                                                                               Rear Brake Fluid
                                                                               Tube

                                                                               Fuel Tank
                                                                               Breather Tube
Fuel Tank
Cap Open
Cable




Speedometer Cable


                            Fuel Tank Inlet
                            Tube

                                Wire Harness

1-13
