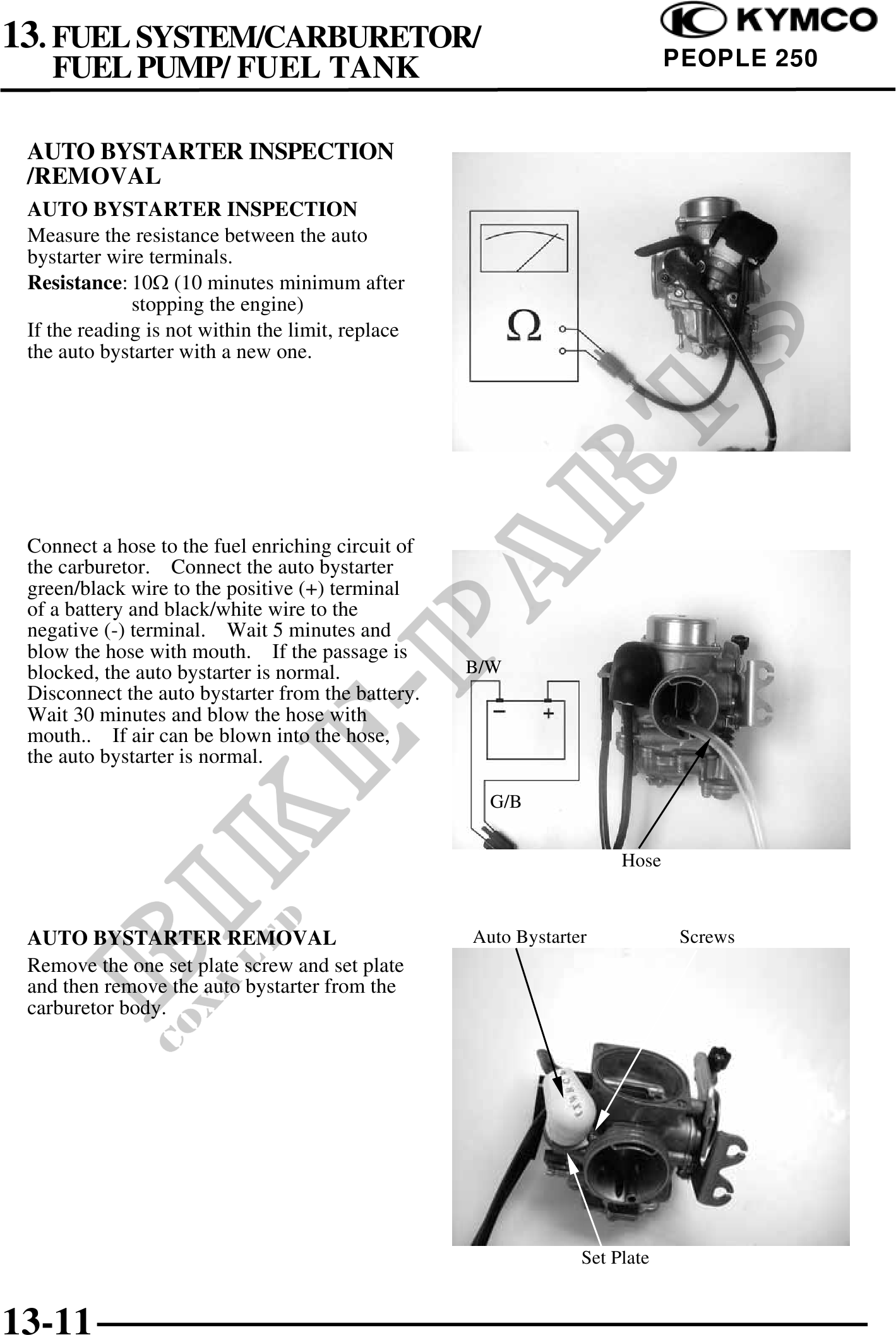

13. FUEL SYSTEM/CARBURETOR/ FUEL PUMP/ FUEL TANK PEOPLE 250 AUTO BYSTARTER INSPECTION /REMOVAL AUTO BYSTARTER INSPECTION Measure the resistance between the auto bystarter wire terminals. Resistance: 10 (10 minutes minimum after stopping the engine) If the reading is not within the limit, replace the auto bystarter with a new one. Connect a hose to the fuel enriching circuit of the carburetor. Connect the auto bystarter green/black wire to the positive (+) terminal of a battery and black/white wire to the negative (-) terminal. Wait 5 minutes and blow the hose with mouth. If the passage is blocked, the auto bystarter is normal. B/W Disconnect the auto bystarter from the battery. Wait 30 minutes and blow the hose with mouth.. If air can be blown into the hose, the auto bystarter is normal. G/B Hose AUTO BYSTARTER REMOVAL Auto Bystarter Screws Remove the one set plate screw and set plate and then remove the auto bystarter from the carburetor body. Set Plate 13-11
