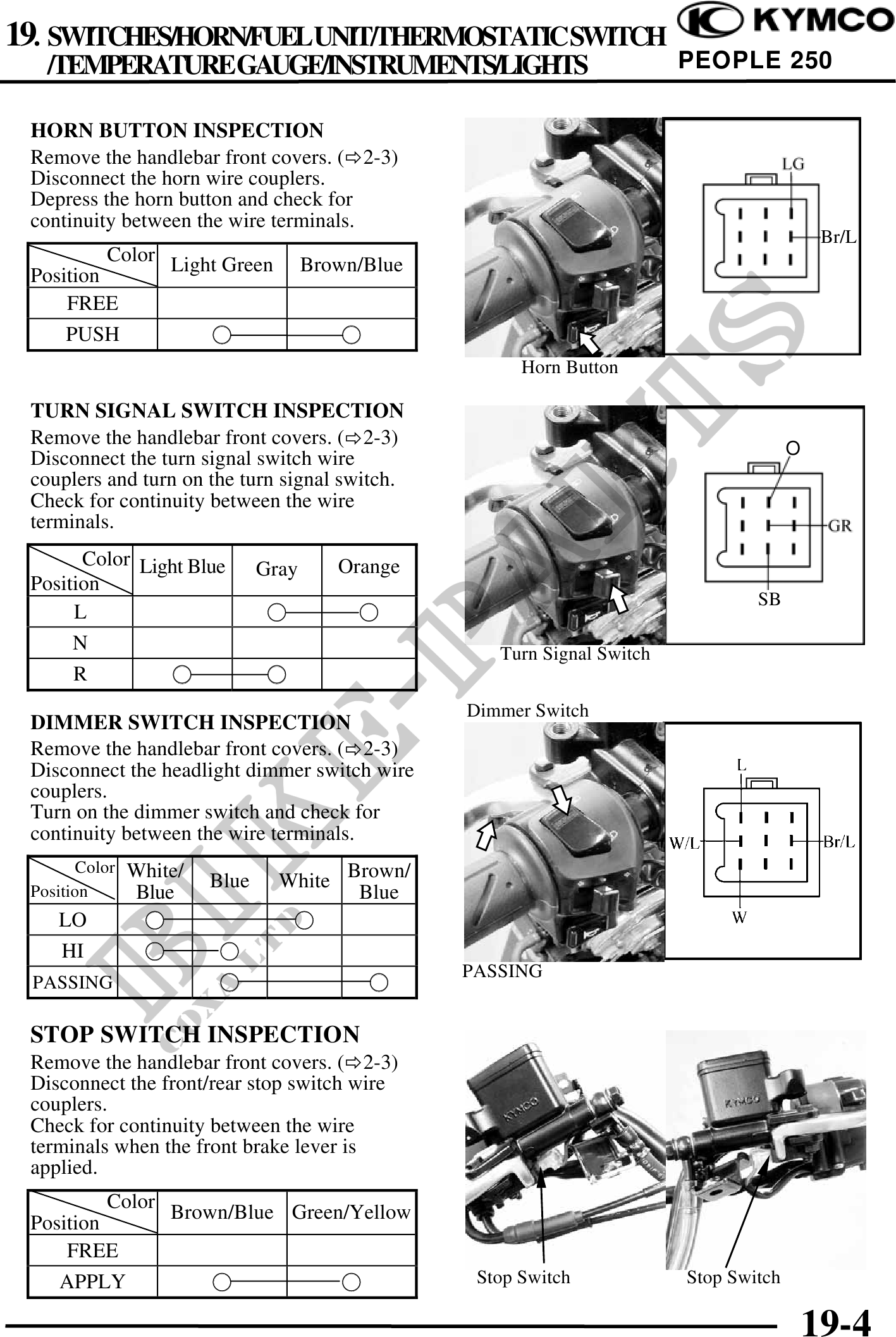

19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS PEOPLE 250 HORN BUTTON INSPECTION Remove the handlebar front covers. ( 2-3) Disconnect the horn wire couplers. Depress the horn button and check for continuity between the wire terminals. Br/L Color Light Green Brown/Blue Position FREE PUSH Horn Button TURN SIGNAL SWITCH INSPECTION Remove the handlebar front covers. ( 2-3) O Disconnect the turn signal switch wire couplers and turn on the turn signal switch. Check for continuity between the wire terminals. Color Light Blue Gray Orange Position SB L N Turn Signal Switch R Dimmer Switch DIMMER SWITCH INSPECTION Remove the handlebar front covers. ( 2-3) Disconnect the headlight dimmer switch wire couplers. Turn on the dimmer switch and check for continuity between the wire terminals. Color White/ Blue White Brown/ Position Blue Blue LO HI PASSING PASSING STOP SWITCH INSPECTION Remove the handlebar front covers. ( 2-3) Disconnect the front/rear stop switch wire couplers. Check for continuity between the wire terminals when the front brake lever is applied. Color Brown/Blue Green/Yellow Position FREE APPLY Stop Switch Stop Switch 19-4
