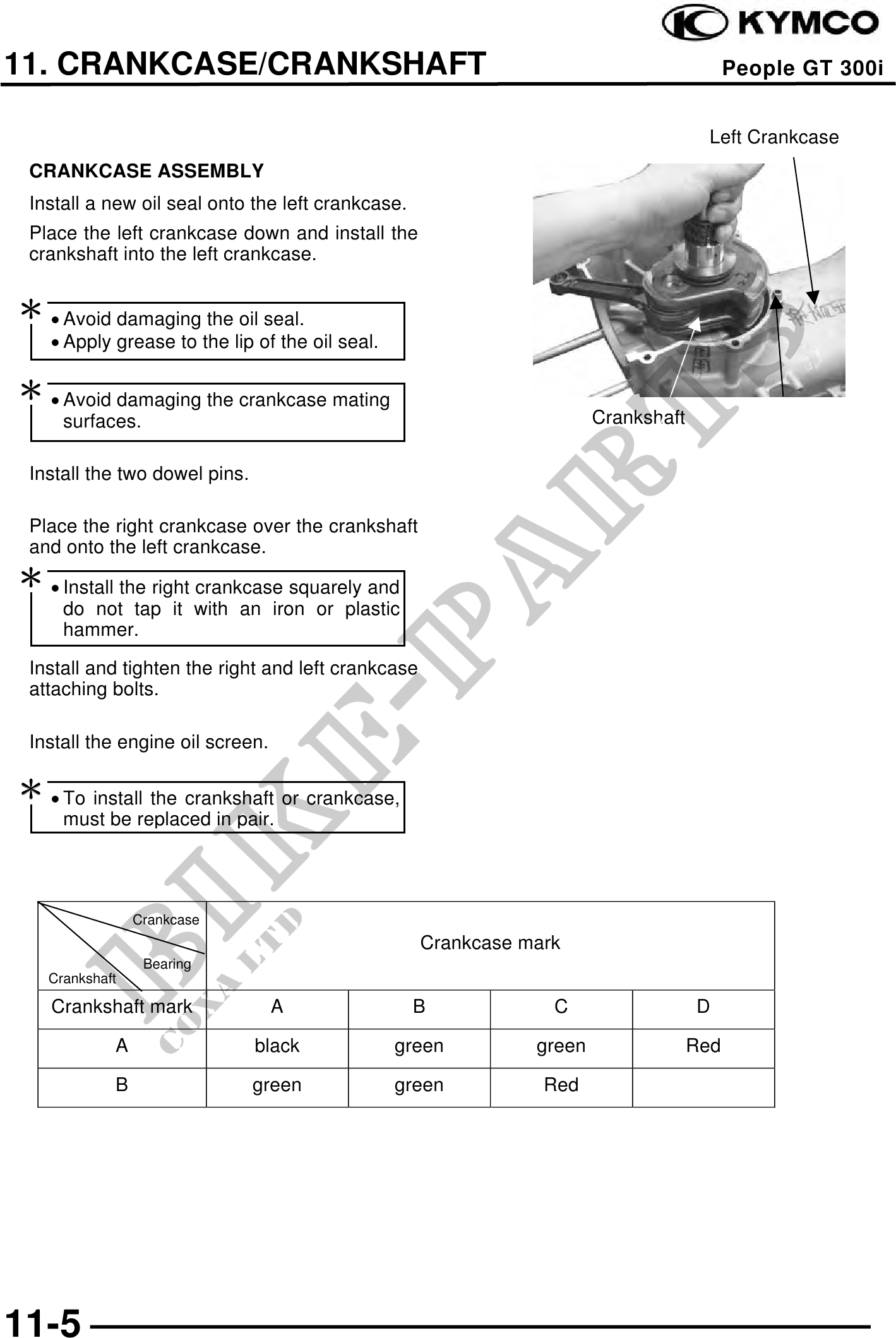

          11. CRANKCASE/CRANKSHAFT                                                                  People GT 300i


                                                                                      Left Crankcase
 CRANKCASE ASSEMBLY
 Install a new oil seal onto the left crankcase.
 Place the left crankcase down and install the
 crankshaft into the left crankcase.

 · Avoid damaging the oil seal.
   · Apply grease to the lip of the oil seal.
                                                                                          Dowel Pins
 · Avoid damaging the crankcase mating
     surfaces.                                                         Crankshaft

 Install the two dowel pins.

 Place the right crankcase over the crankshaft
 and onto the left crankcase.
 · Install the right crankcase squarely and
     do not tap it with an iron or plastic
     hammer.
 Install and tighten the right and left crankcase
 attaching bolts.

 Install the engine oil screen.

 · To install the crankshaft or crankcase,
     must be replaced in pair.




                Crankcase
                                                    Crankcase mark
                 Bearing
   Crankshaft

    Crankshaft mark               A                B             C                  D

            A                  black            green          green                Red

            B                  green            green           Red




11-5
