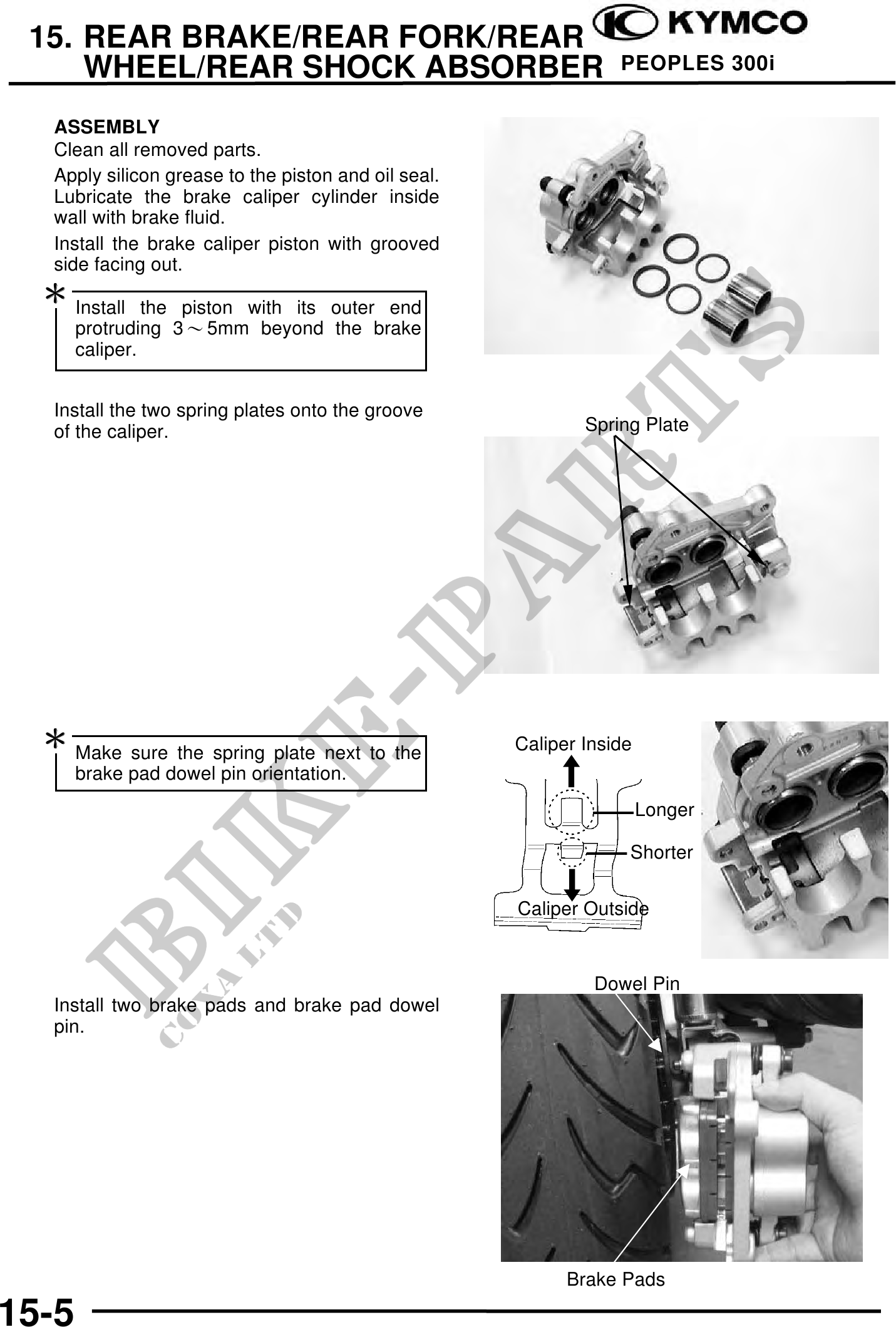

15. REAR BRAKE/REAR FORK/REAR WHEEL/REAR SHOCK ABSORBER PEOPLES 300i ASSEMBLY Clean all removed parts. Apply silicon grease to the piston and oil seal. Lubricate the brake caliper cylinder inside wall with brake fluid. Install the brake caliper piston with grooved side facing out. Install the piston with its outer end protruding 3 5mm beyond the brake caliper. Install the two spring plates onto the groove of the caliper. Spring Plate Make sure the spring plate next to the Caliper Inside brake pad dowel pin orientation. Longer Shorter Caliper Outside Dowel Pin Install two brake pads and brake pad dowel pin. Brake Pads 15-5
