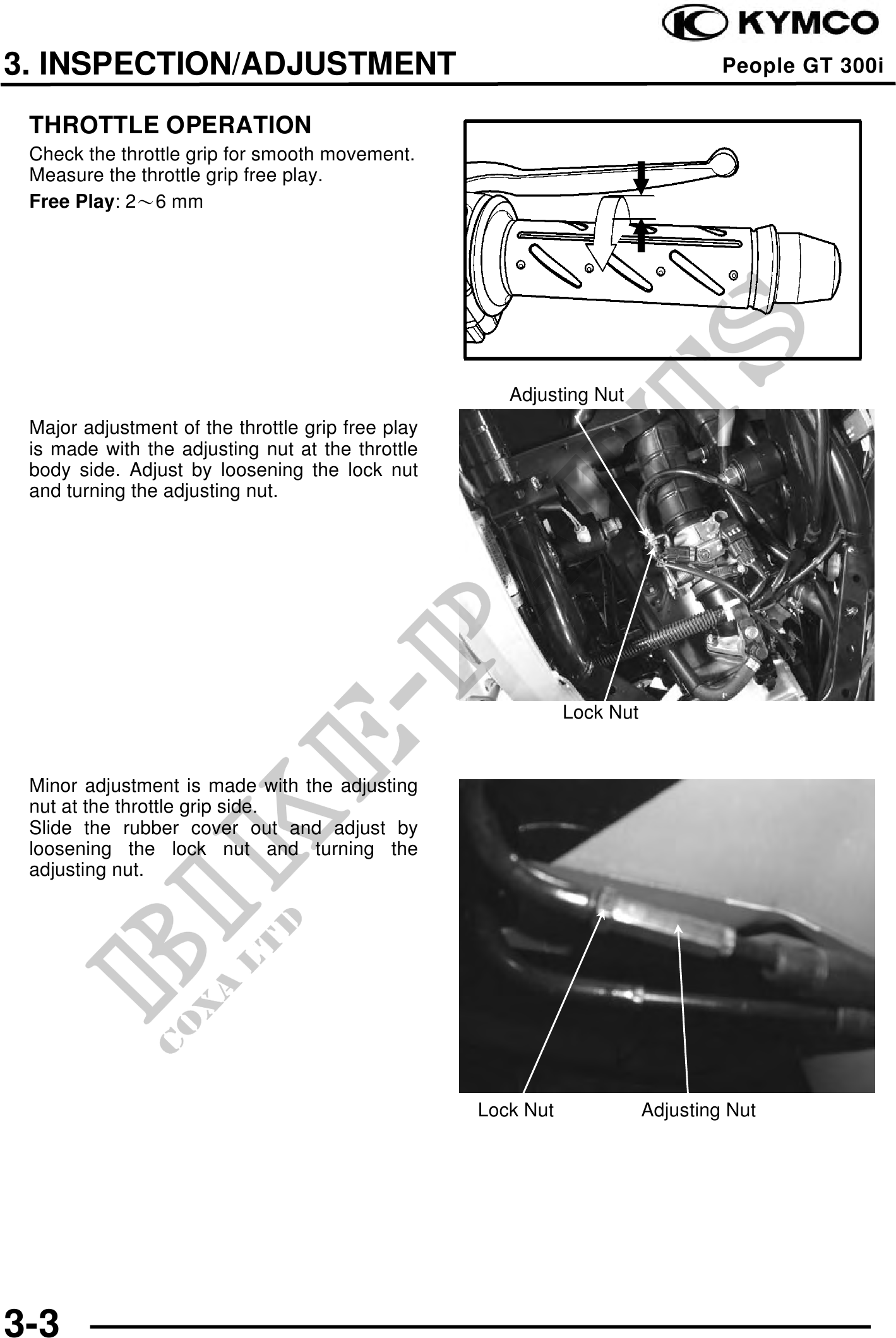

3. INSPECTION/ADJUSTMENT People GT 300i
THROTTLE OPERATION
Check the throttle grip for smooth movement.
Measure the throttle grip free play.
Free Play: 26 mm
Adjusting Nut
Major adjustment of the throttle grip free play
is made with the adjusting nut at the throttle
body side. Adjust by loosening the lock nut
and turning the adjusting nut.
Lock Nut
Minor adjustment is made with the adjusting
nut at the throttle grip side.
Slide the rubber cover out and adjust by
loosening the lock nut and turning the
adjusting nut.
Lock Nut Adjusting Nut
3-3
