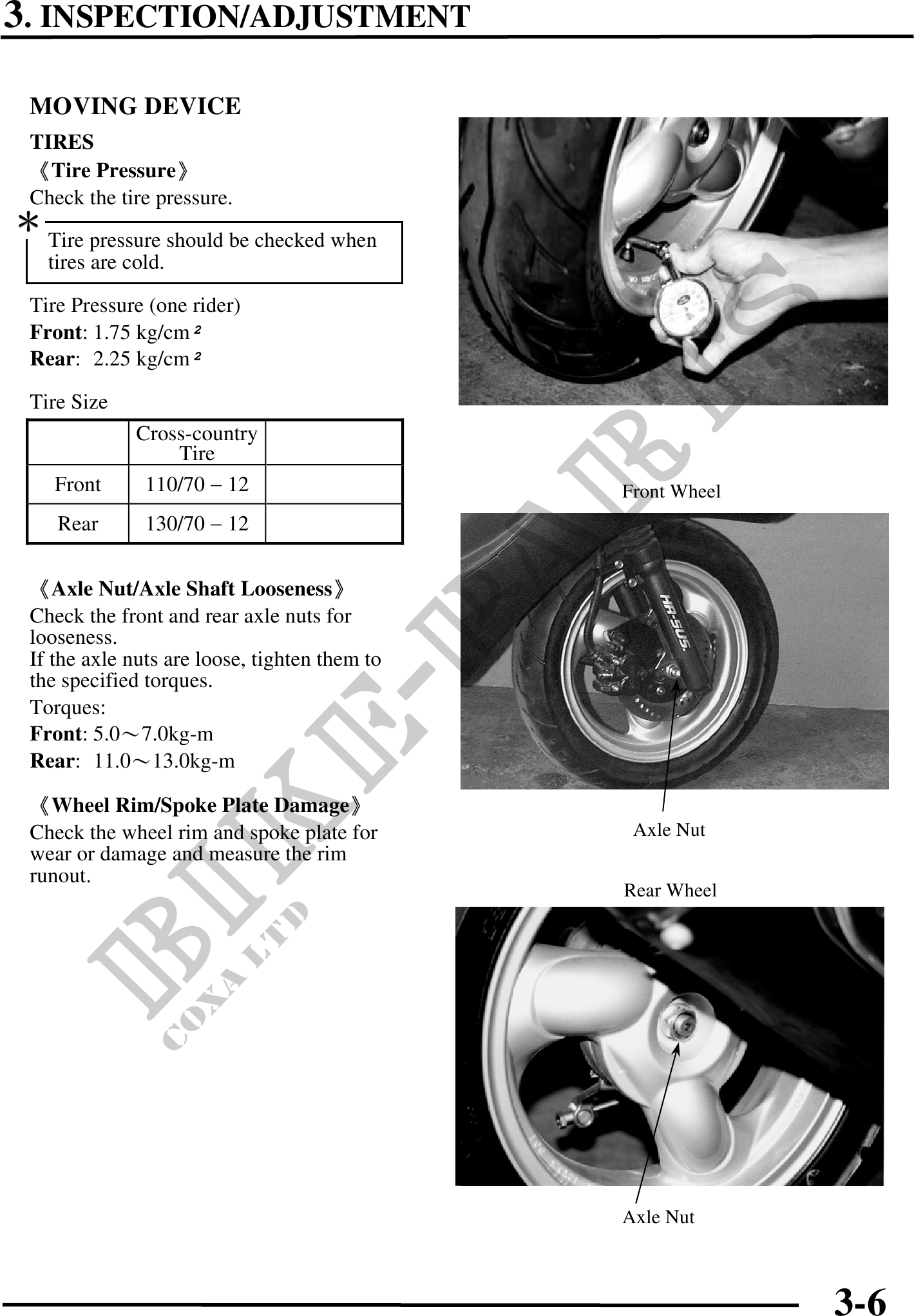

3. INSPECTION/ADJUSTMENT
MOVING DEVICE
TIRES
Tire Pressure
Check the tire pressure.
Tire pressure should be checked when
tires are cold.
Tire Pressure (one rider)
Front: 1.75 kg/cm
Rear: 2.25 kg/cm
Tire Size
Cross-country
Tire
Front 110/70 - 12 Front Wheel
Rear 130/70 - 12
Axle Nut/Axle Shaft Looseness
Check the front and rear axle nuts for
looseness.
If the axle nuts are loose, tighten them to
the specified torques.
Torques:
Front: 5.07.0kg-m
Rear: 11.013.0kg-m
Wheel Rim/Spoke Plate Damage
Check the wheel rim and spoke plate for Axle Nut
wear or damage and measure the rim
runout.
Rear Wheel
Axle Nut
3-6
