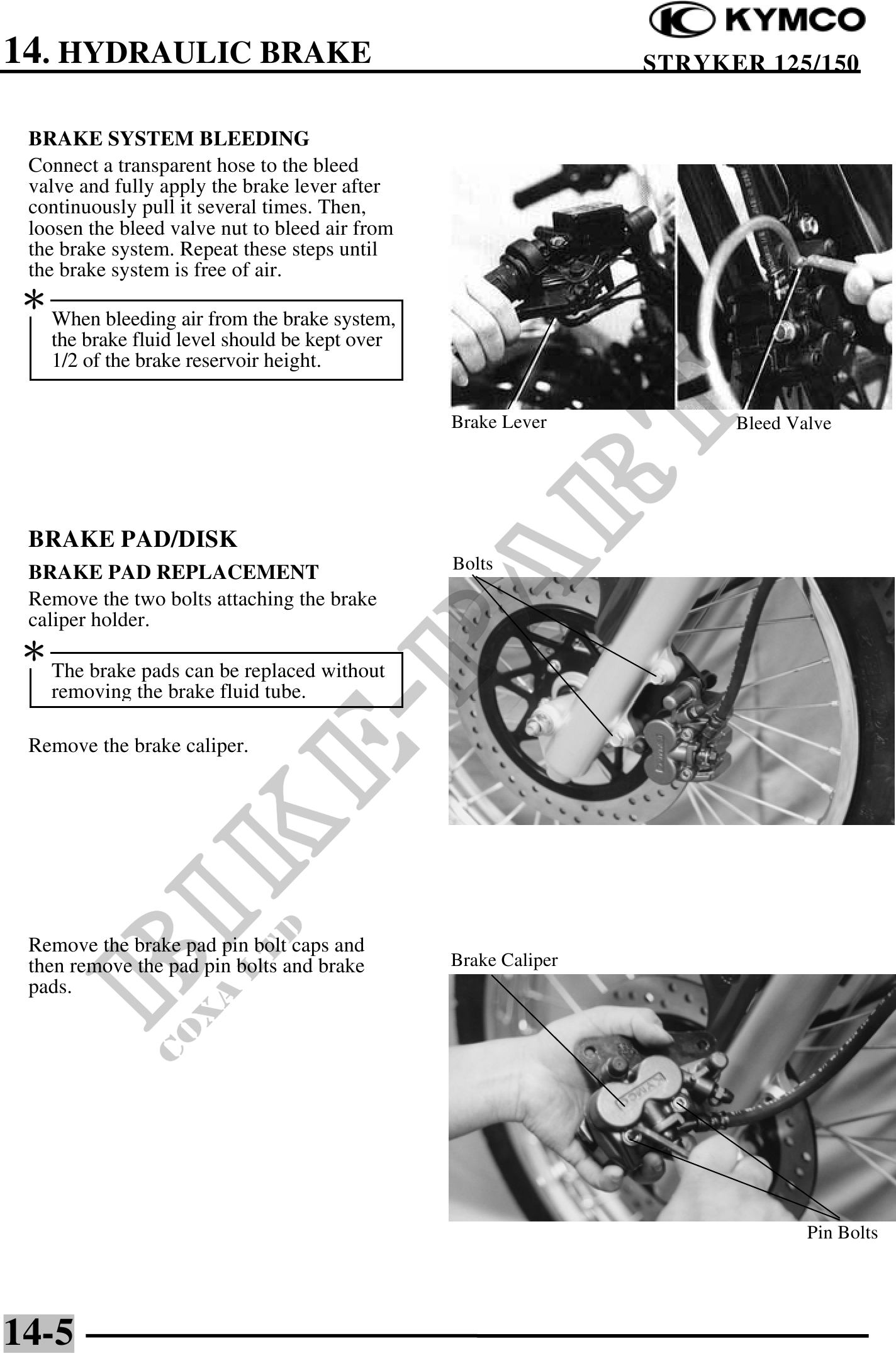

14. HYDRAULIC BRAKE STRYKER 125/150
BRAKE SYSTEM BLEEDING
Connect a transparent hose to the bleed
valve and fully apply the brake lever after
continuously pull it several times. Then,
loosen the bleed valve nut to bleed air from
the brake system. Repeat these steps until
the brake system is free of air.
When bleeding air from the brake system,
the brake fluid level should be kept over
1/2 of the brake reservoir height.
Brake Lever Bleed Valve
BRAKE PAD/DISK
BRAKE PAD REPLACEMENT Bolts
Remove the two bolts attaching the brake
caliper holder.
The brake pads can be replaced without
removing the brake fluid tube.
Remove the brake caliper.
Remove the brake pad pin bolt caps and
then remove the pad pin bolts and brake Brake Caliper
pads.
Pin Bolts
14-5
