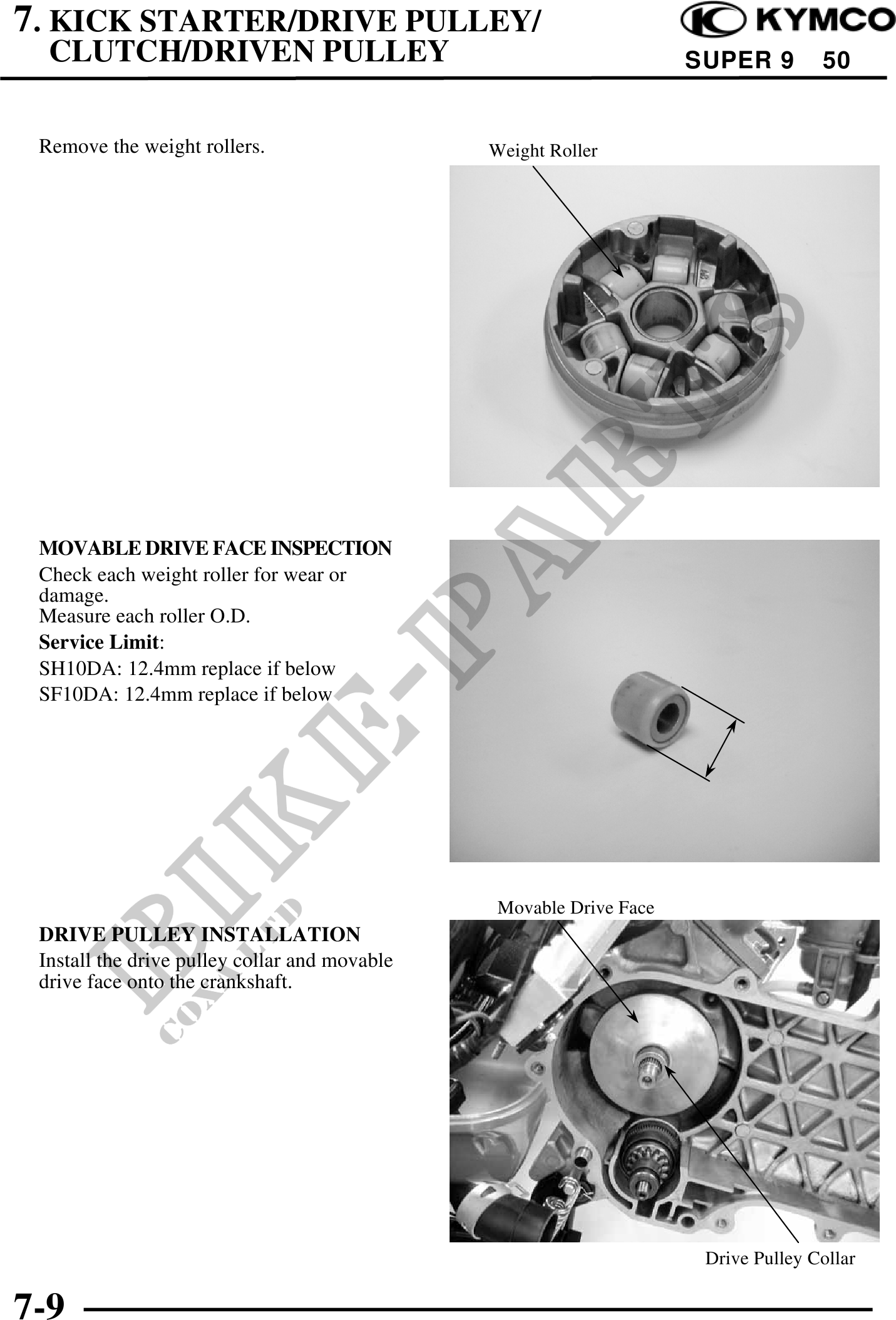

7. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY SUPER 9 50
Remove the weight rollers. Weight Roller
MOVABLE DRIVE FACE INSPECTION
Check each weight roller for wear or
damage.
Measure each roller O.D.
Service Limit:
SH10DA: 12.4mm replace if below
SF10DA: 12.4mm replace if below
Movable Drive Face
DRIVE PULLEY INSTALLATION
Install the drive pulley collar and movable
drive face onto the crankshaft.
Drive Pulley Collar
7-9
