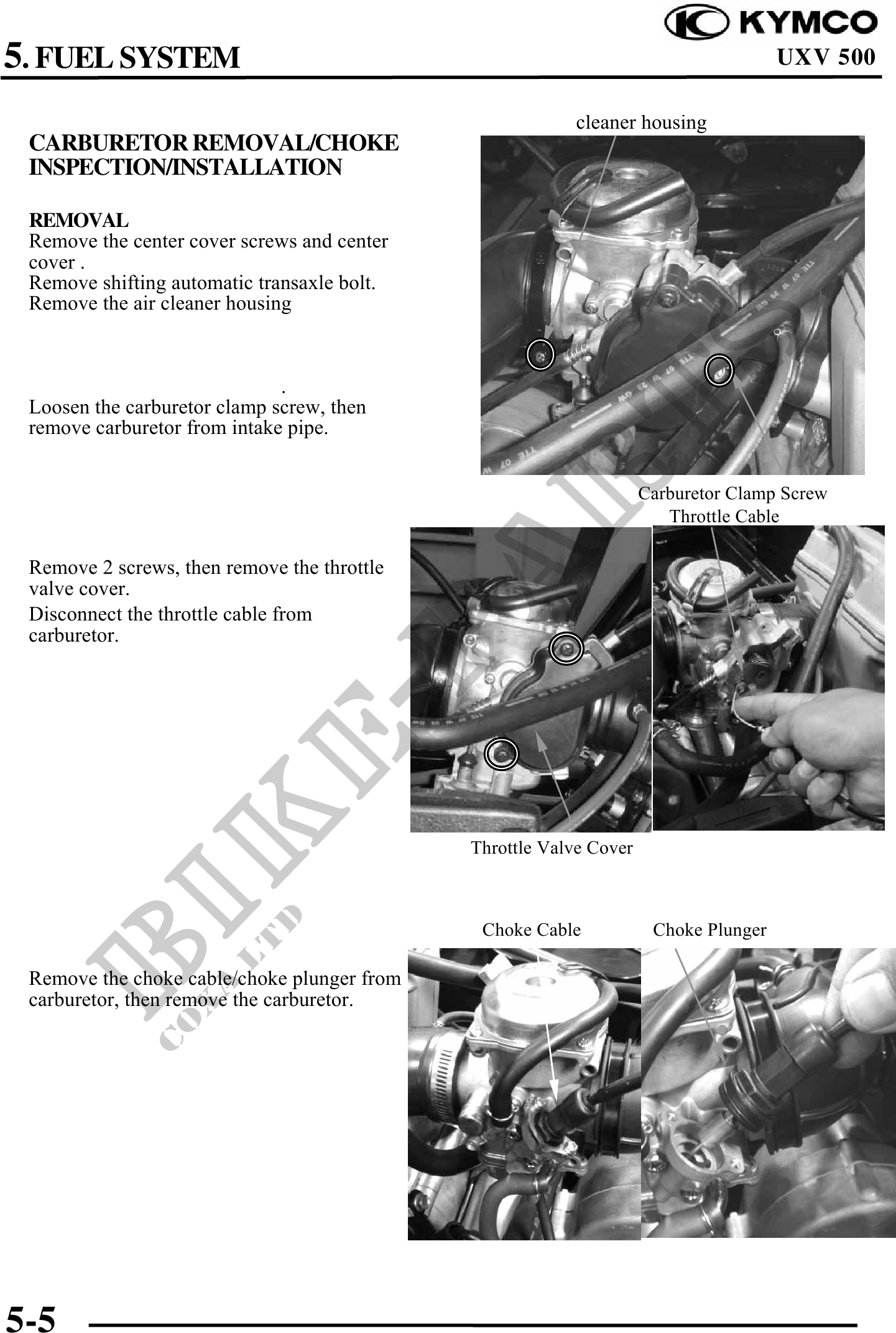

5. FUEL SYSTEM UXV 500
cleaner housing
CARBURETOR REMOVAL/CHOKE
INSPECTION/INSTALLATION
REMOVAL
Remove the center cover screws and center
cover .
Remove shifting automatic transaxle bolt.
Remove the air cleaner housing (refer to the
"AIR CLEANER HOUSING" section in
this chapter).
Disconnect the over flow hose.
Loosen the carburetor clamp screw, then
remove carburetor from intake pipe.
Carburetor Clamp Screw
Throttle Cable
Remove 2 screws, then remove the throttle
valve cover.
Disconnect the throttle cable from
carburetor.
Throttle Valve Cover
Choke Cable Choke Plunger
Remove the choke cable/choke plunger from
carburetor, then remove the carburetor.
5-5
