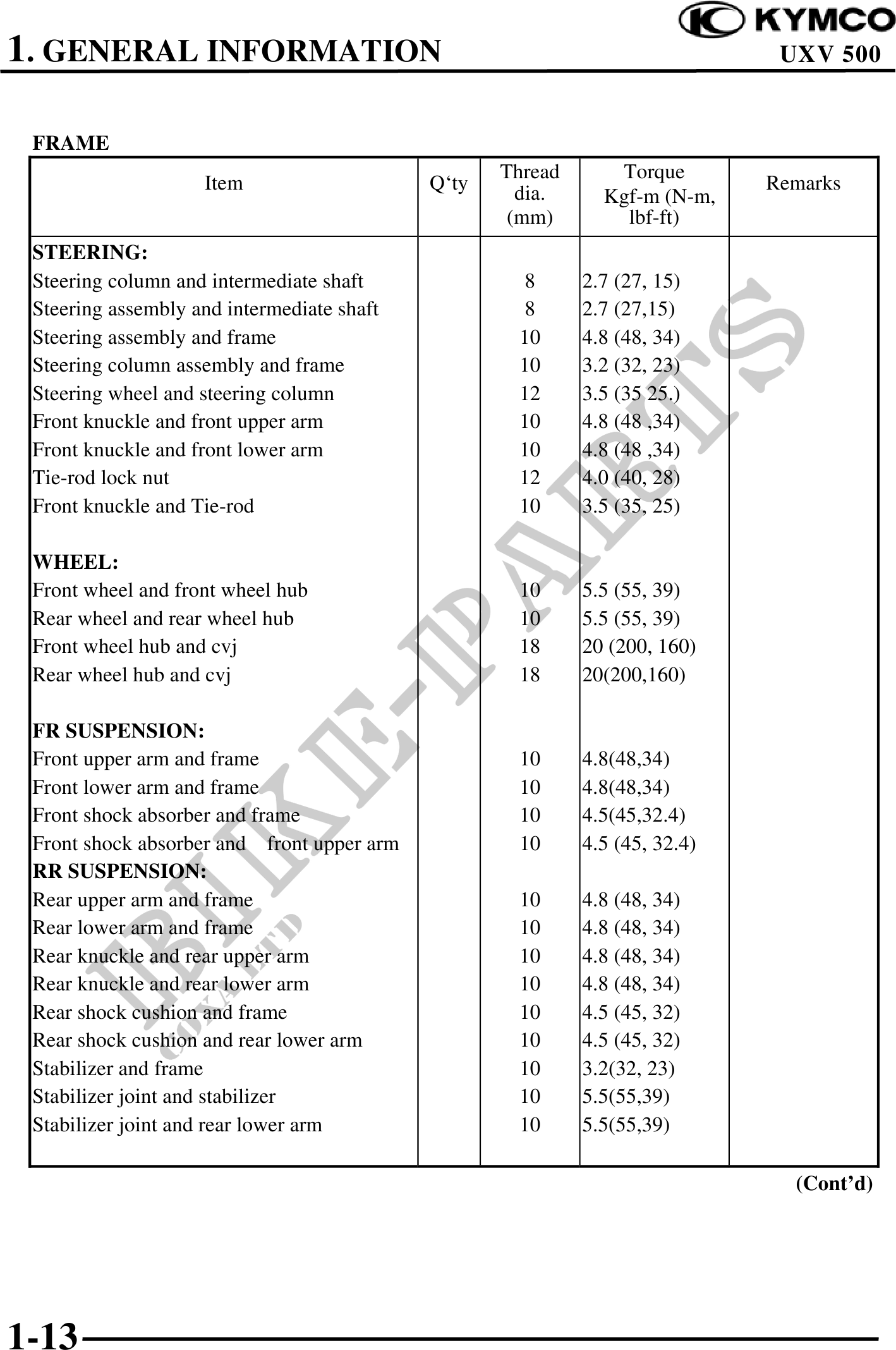

          1. GENERAL INFORMATION                                                        UXV 500


 FRAME
                                                   Thread      Torque
                    Item                    Q`ty     dia.                    Remarks
                                                              Kgf-m (N-m,
                                                    (mm)        lbf-ft)
 STEERING:
 Steering column and intermediate shaft              8      2.7 (27, 15)
 Steering assembly and intermediate shaft            8      2.7 (27,15)
 Steering assembly and frame                        10      4.8 (48, 34)
 Steering column assembly and frame                 10      3.2 (32, 23)
 Steering wheel and steering column                 12      3.5 (35 25.)
 Front knuckle and front upper arm                  10      4.8 (48 ,34)
 Front knuckle and front lower arm                  10      4.8 (48 ,34)
 Tie-rod lock nut                                   12      4.0 (40, 28)
 Front knuckle and Tie-rod                          10      3.5 (35, 25)

 WHEEL:
 Front wheel and front wheel hub                    10      5.5 (55, 39)
 Rear wheel and rear wheel hub                      10      5.5 (55, 39)
 Front wheel hub and cvj                            18      20 (200, 160)
 Rear wheel hub and cvj                             18      20(200,160)

 FR SUSPENSION:
 Front upper arm and frame                          10      4.8(48,34)
 Front lower arm and frame                          10      4.8(48,34)
 Front shock absorber and frame                     10      4.5(45,32.4)
 Front shock absorber and front upper arm           10      4.5 (45, 32.4)
 RR SUSPENSION:
 Rear upper arm and frame                           10      4.8 (48, 34)
 Rear lower arm and frame                           10      4.8 (48, 34)
 Rear knuckle and rear upper arm                    10      4.8 (48, 34)
 Rear knuckle and rear lower arm                    10      4.8 (48, 34)
 Rear shock cushion and frame                       10      4.5 (45, 32)
 Rear shock cushion and rear lower arm              10      4.5 (45, 32)
 Stabilizer and frame                               10      3.2(32, 23)
 Stabilizer joint and stabilizer                    10      5.5(55,39)
 Stabilizer joint and rear lower arm                10      5.5(55,39)

                                                                               (Cont'd)




1-13
