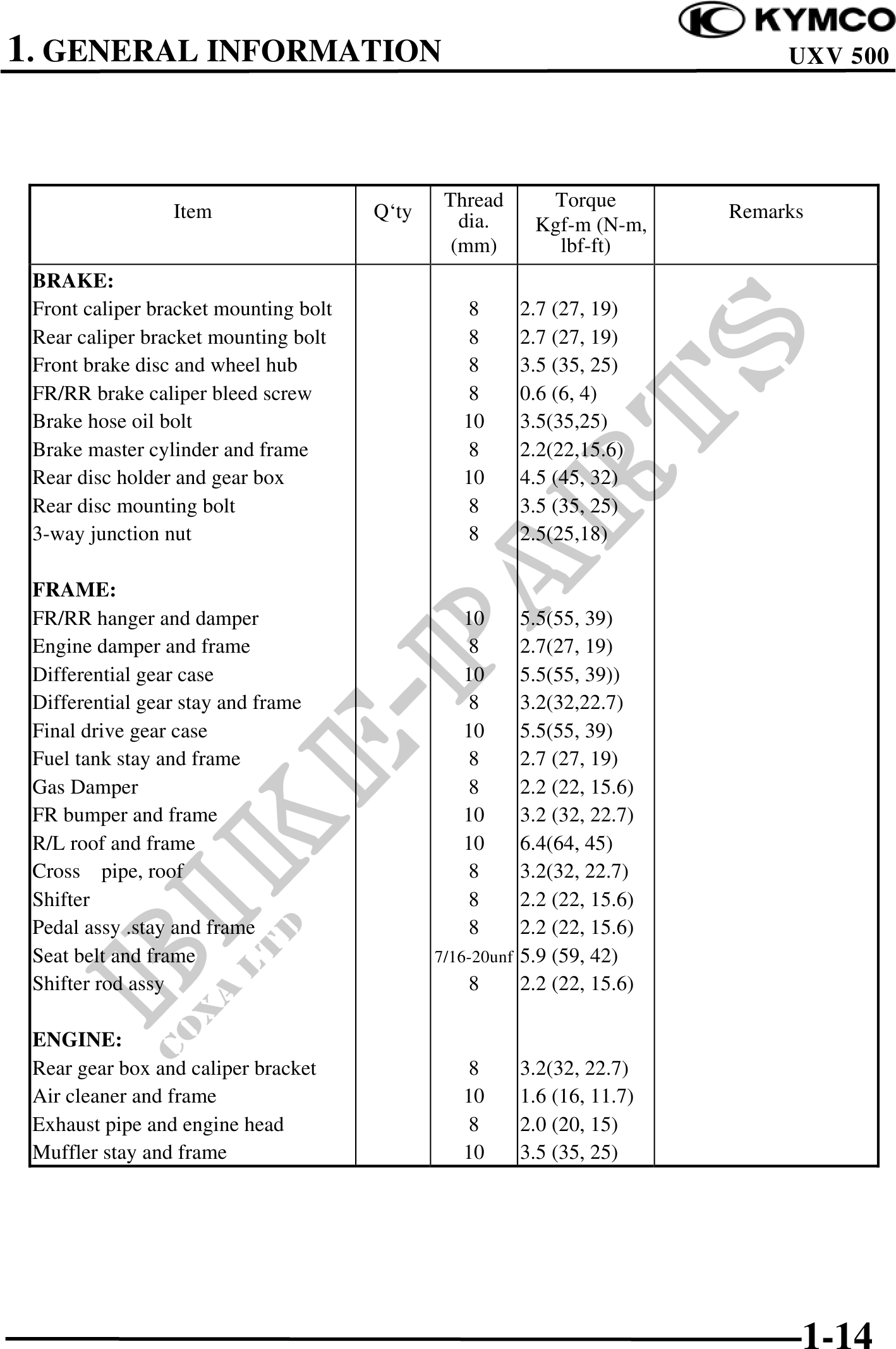

          1. GENERAL INFORMATION                                                         UXV 500




                                               Thread      Torque
                 Item                  Q`ty      dia.                     Remarks
                                                          Kgf-m (N-m,
                                                (mm)        lbf-ft)
 BRAKE:
 Front caliper bracket mounting bolt              8     2.7 (27, 19)
 Rear caliper bracket mounting bolt               8     2.7 (27, 19)
 Front brake disc and wheel hub                   8     3.5 (35, 25)
 FR/RR brake caliper bleed screw                  8     0.6 (6, 4)
 Brake hose oil bolt                             10     3.5(35,25)
 Brake master cylinder and frame                  8     2.2(22,15.6)
 Rear disc holder and gear box                   10     4.5 (45, 32)
 Rear disc mounting bolt                          8     3.5 (35, 25)
 3-way junction nut                               8     2.5(25,18)

 FRAME:
 FR/RR hanger and damper                         10      5.5(55, 39)
 Engine damper and frame                          8      2.7(27, 19)
 Differential gear case                          10      5.5(55, 39))
 Differential gear stay and frame                 8      3.2(32,22.7)
 Final drive gear case                           10      5.5(55, 39)
 Fuel tank stay and frame                         8      2.7 (27, 19)
 Gas Damper                                       8      2.2 (22, 15.6)
 FR bumper and frame                             10      3.2 (32, 22.7)
 R/L roof and frame                              10      6.4(64, 45)
 Cross pipe, roof                                 8      3.2(32, 22.7)
 Shifter                                          8      2.2 (22, 15.6)
 Pedal assy .stay and frame                       8      2.2 (22, 15.6)
 Seat belt and frame                          7/16-20unf 5.9 (59, 42)
 Shifter rod assy                                 8      2.2 (22, 15.6)

 ENGINE:
 Rear gear box and caliper bracket                8     3.2(32, 22.7)
 Air cleaner and frame                           10     1.6 (16, 11.7)
 Exhaust pipe and engine head                     8     2.0 (20, 15)
 Muffler stay and frame                          10     3.5 (35, 25)




                                                                                1-14
