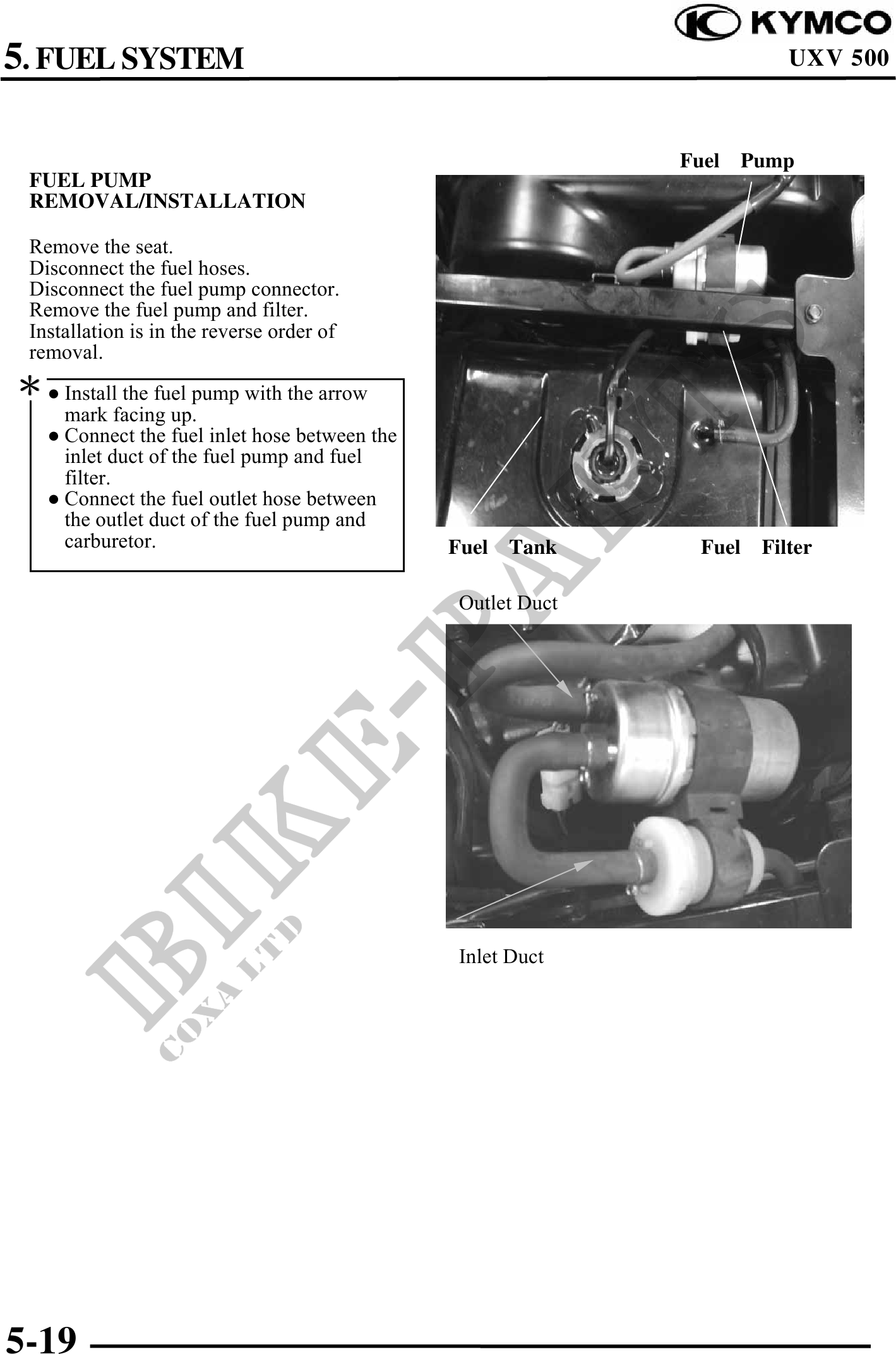

          5. FUEL SYSTEM                                                          UXV 500



                                                            Fuel   Pump
 FUEL PUMP
 REMOVAL/INSTALLATION

 Remove the seat.
 Disconnect the fuel hoses.
 Disconnect the fuel pump connector.
 Remove the fuel pump and filter.
 Installation is in the reverse order of
 removal.
  Install the fuel pump with the arrow
    mark facing up.
    Connect the fuel inlet hose between the
    inlet duct of the fuel pump and fuel
    filter.
    Connect the fuel outlet hose between
    the outlet duct of the fuel pump and
    carburetor.                               Fuel Tank       Fuel   Filter

                                              Outlet Duct




                                              Inlet Duct




5-19
