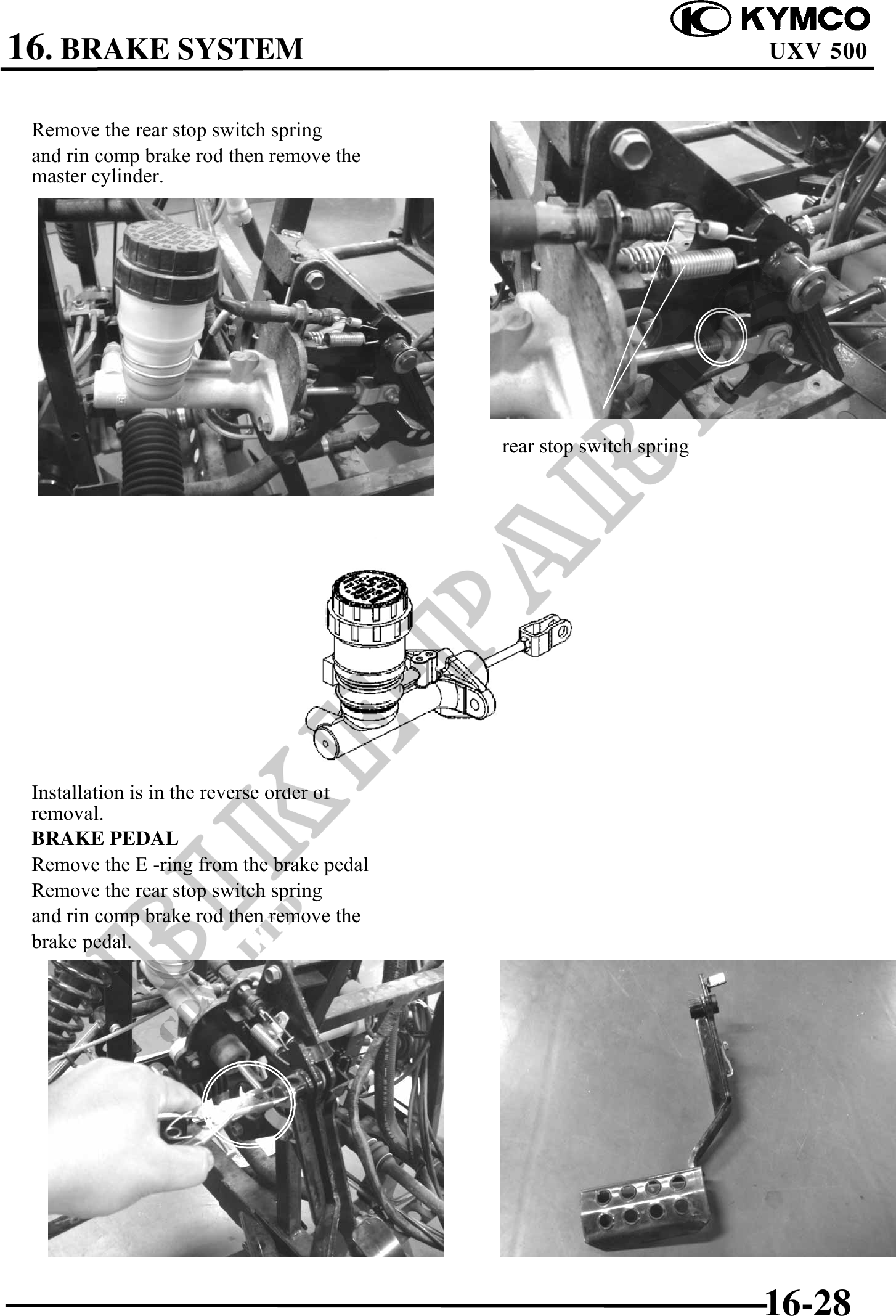

          16. BRAKE SYSTEM                                                     UXV 500


 Remove the rear stop switch spring
 and rin comp brake rod then remove the
 master cylinder.




                                           rear stop switch spring




 Installation is in the reverse order of
 removal.
 BRAKE PEDAL
 Remove the E -ring from the brake pedal
 Remove the rear stop switch spring
 and rin comp brake rod then remove the
 brake pedal.




                                                                     16-28
