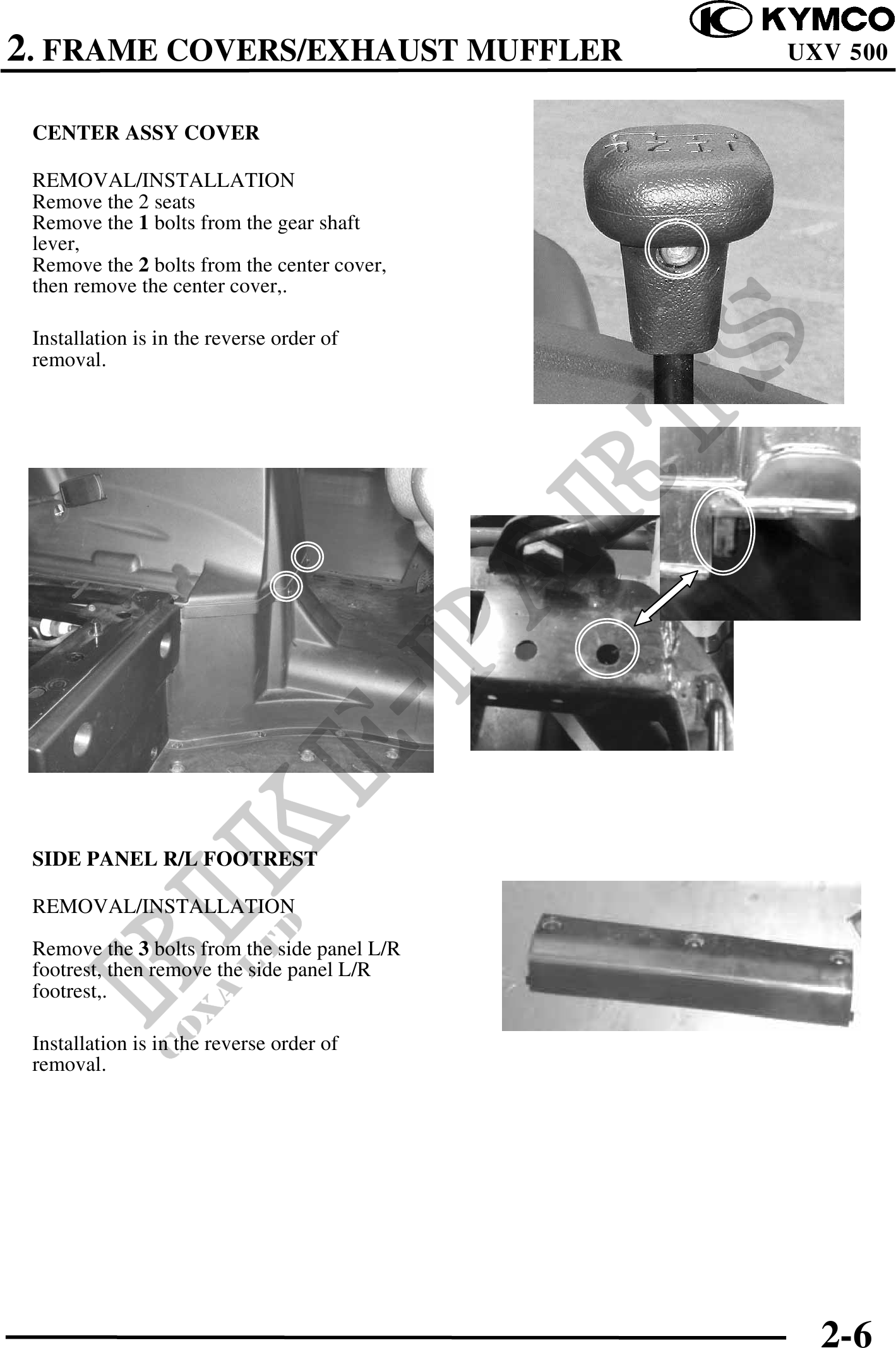

          2. FRAME COVERS/EXHAUST MUFFLER               UXV 500


 CENTER ASSY COVER

 REMOVAL/INSTALLATION
 Remove the 2 seats
 Remove the 1 bolts from the gear shaft
 lever,
 Remove the 2 bolts from the center cover,
 then remove the center cover,.

 Installation is in the reverse order of
 removal.




 SIDE PANEL R/L FOOTREST

 REMOVAL/INSTALLATION

 Remove the 3 bolts from the side panel L/R
 footrest, then remove the side panel L/R
 footrest,.

 Installation is in the reverse order of
 removal.
