16. IGNITION SYSTEM QUANNON 125

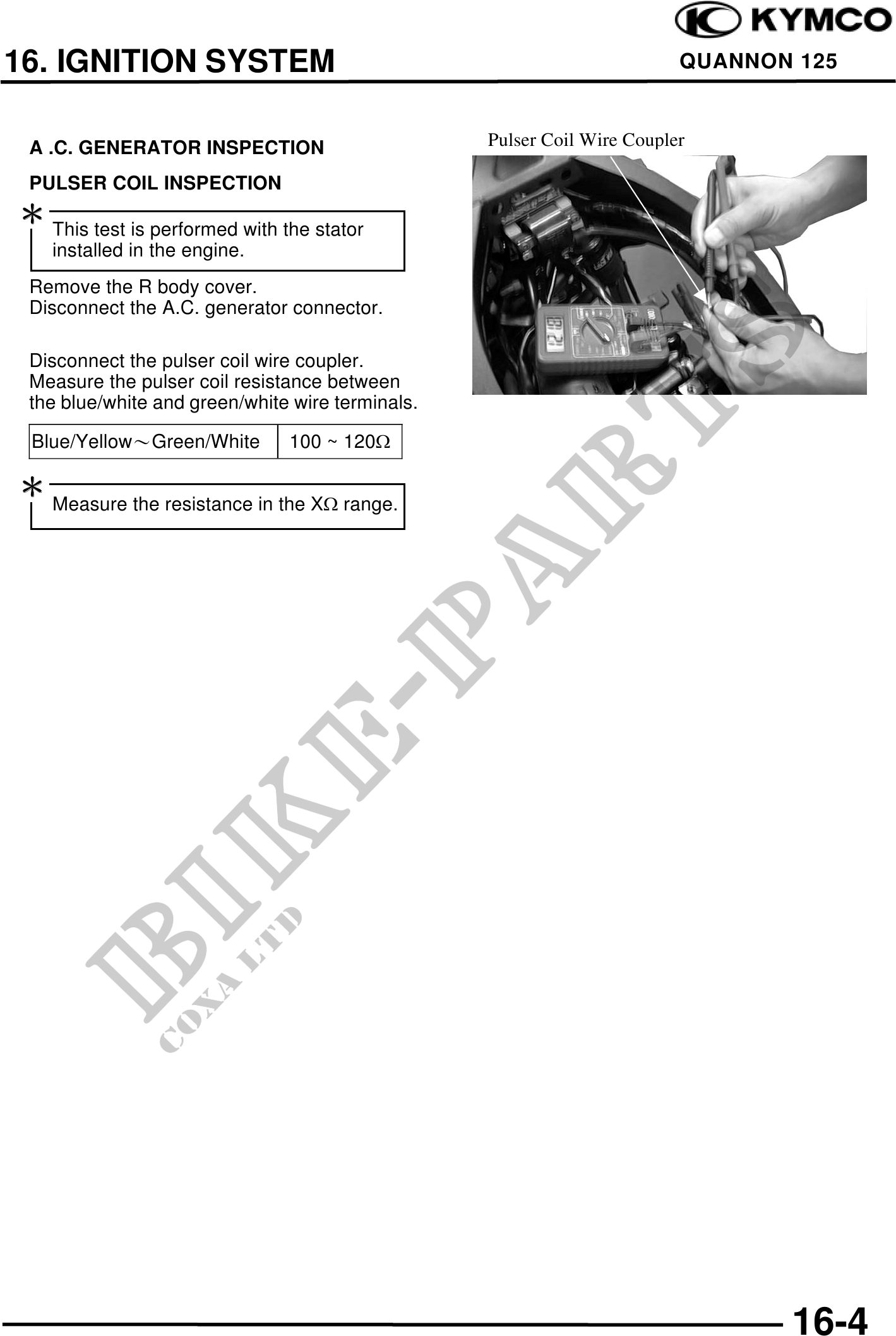

A .C. GENERATOR INSPECTION Pulser Coil Wire Coupler
PULSER COIL INSPECTION
This test is performed with the stator
installed in the engine.
Remove the R body cover.
Disconnect the A.C. generator connector.
Disconnect the pulser coil wire coupler.
Measure the pulser coil resistance between
the blue/white and green/white wire terminals.
Blue/YellowGreen/White 100 ~ 120
Measure the resistance in the X range.
