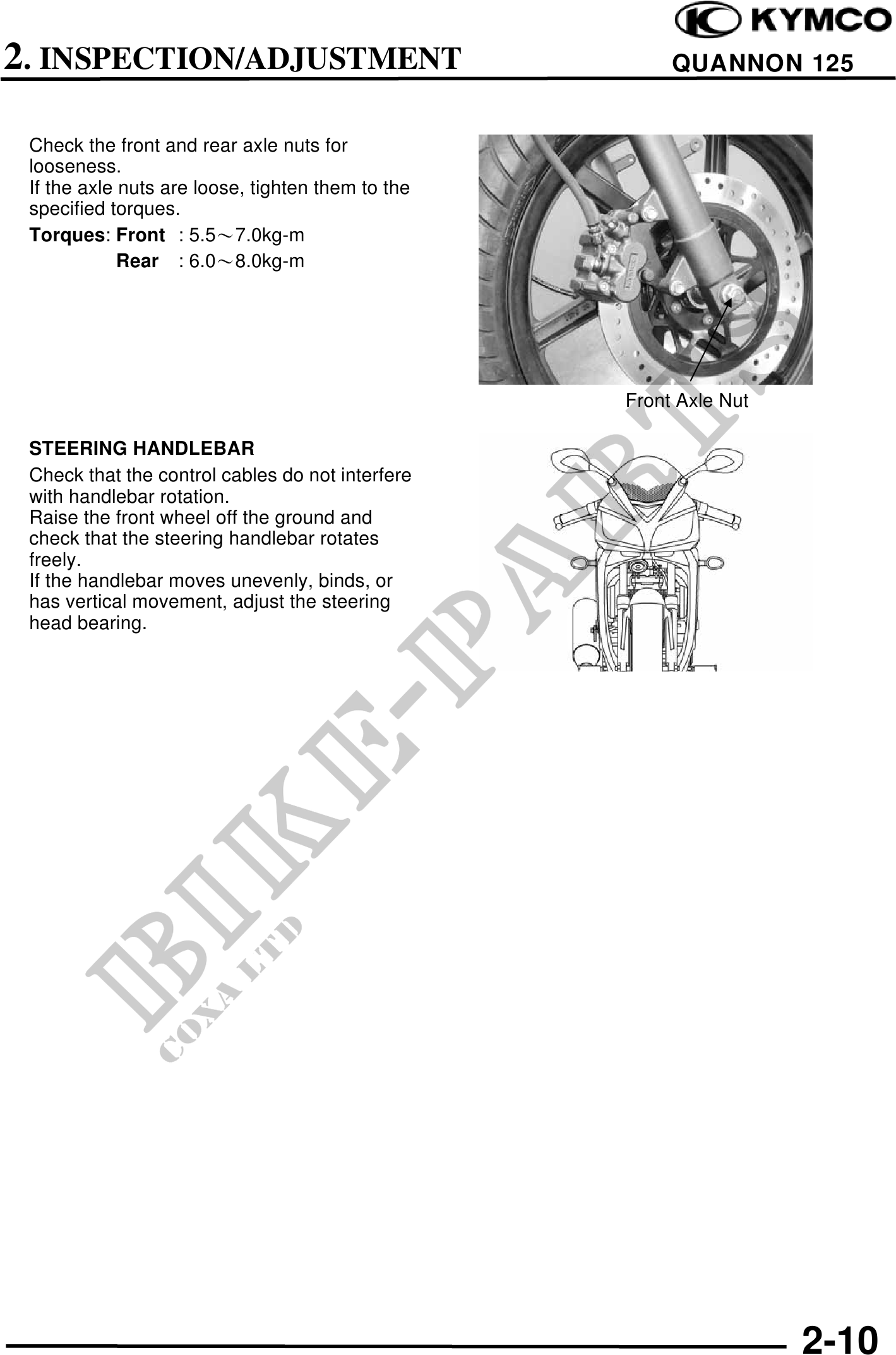

2. INSPECTION/ADJUSTMENT QUANNON 125
Check the front and rear axle nuts for
looseness.
If the axle nuts are loose, tighten them to the
specified torques.
Torques: Front : 5.57.0kg-m
Rear : 6.08.0kg-m
Front Axle Nut
STEERING HANDLEBAR
Check that the control cables do not interfere
with handlebar rotation.
Raise the front wheel off the ground and
check that the steering handlebar rotates
freely.
If the handlebar moves unevenly, binds, or
has vertical movement, adjust the steering
head bearing.
2-10
