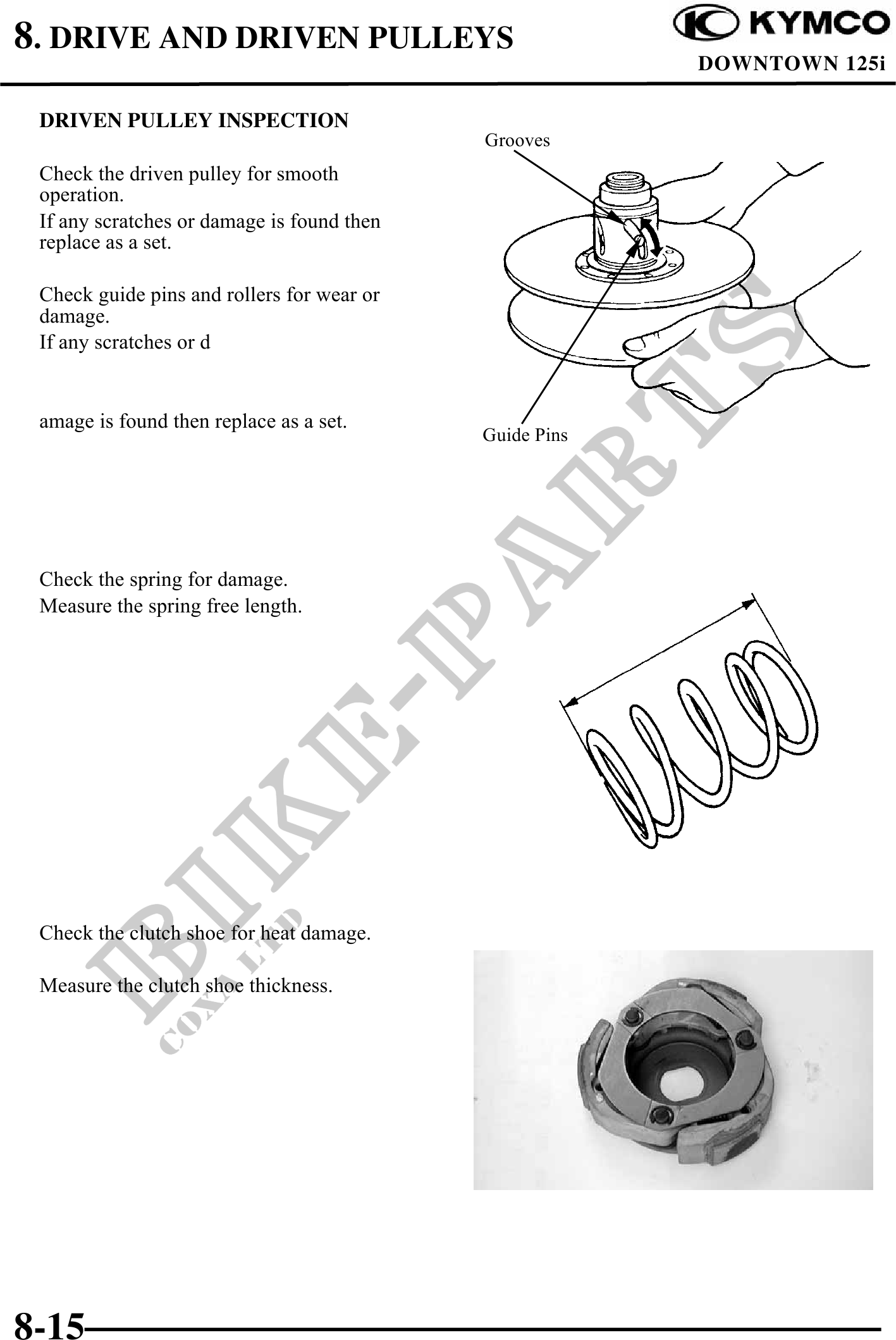

8. DRIVE AND DRIVEN PULLEYS
DOWNTOWN 125i
DRIVEN PULLEY INSPECTION
Grooves
Check the driven pulley for smooth
operation.
If any scratches or damage is found then
replace as a set.
Check guide pins and rollers for wear or
damage.
If any scratches or d
amage is found then replace as a set.
Guide Pins
Check the spring for damage.
Measure the spring free length.
Ser
Check the clutch shoe for heat damage.
Measure the clutch shoe thickness.
Service limit (A): 2 mm (0.08 in)
8-15
