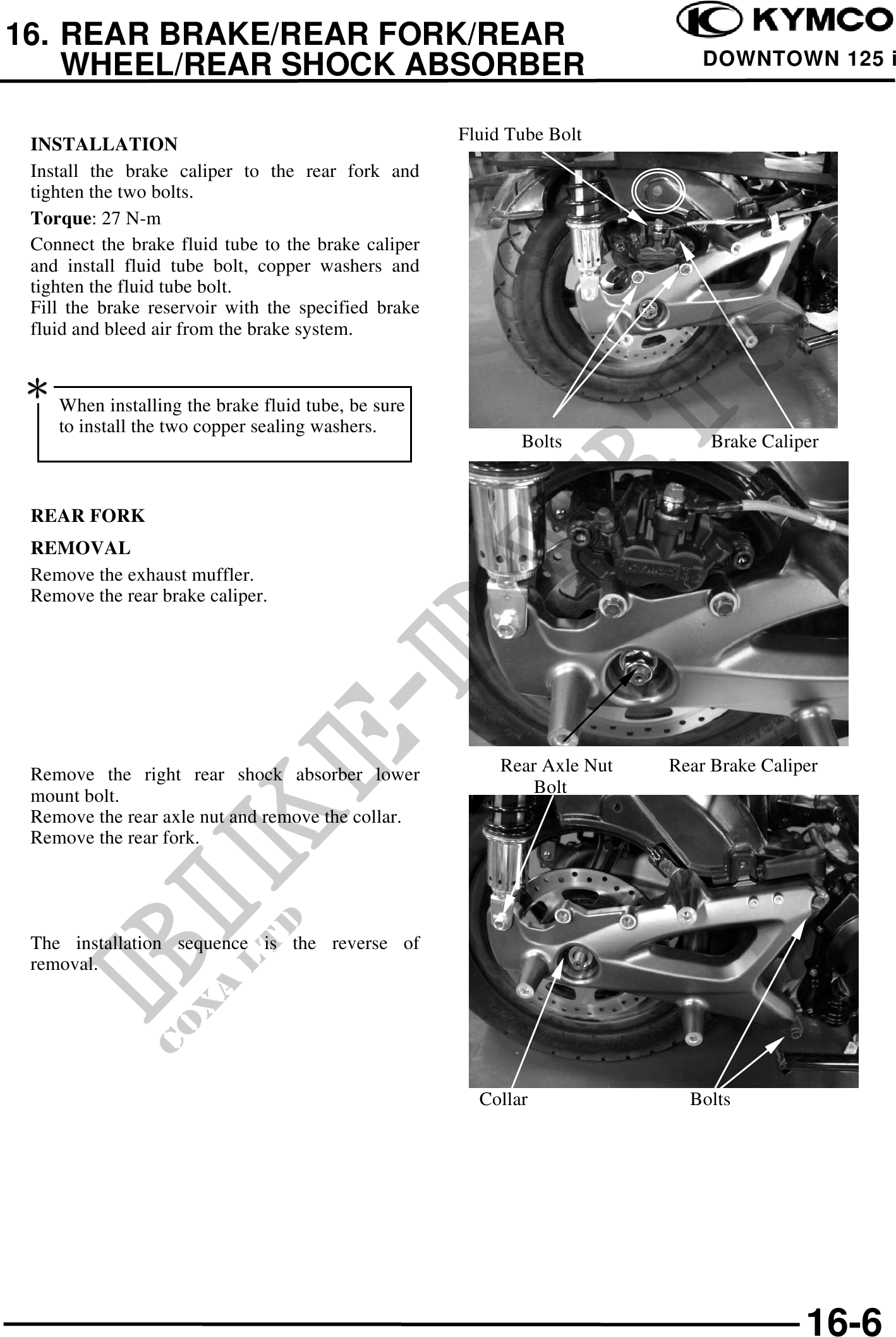

16. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER DOWNTOWN 125 i
Fluid Tube Bolt
INSTALLATION
Install the brake caliper to the rear fork and
tighten the two bolts.
Torque: 27 N-m
Connect the brake fluid tube to the brake caliper
and install fluid tube bolt, copper washers and
tighten the fluid tube bolt.
Fill the brake reservoir with the specified brake
fluid and bleed air from the brake system.
When installing the brake fluid tube, be sure
to install the two copper sealing washers.
Bolts Brake Caliper
REAR FORK
REMOVAL
Remove the exhaust muffler.
Remove the rear brake caliper.
Remove the right rear shock absorber lower Rear Axle Nut Rear Brake Caliper
mount bolt. Bolt
Remove the rear axle nut and remove the collar.
Remove the rear fork.
The installation sequence is the reverse of
removal.
Turn the inner race of each bearing with your
finger to see if they turn smoothly and quietly.
Also check if the outer race fits tightly in the hub.
Collar Bolts
Replace the bearings if the races do not turn
smoothly, quietly, or if they fit loosely in the hub.
