3. INSPECTION/ADJUSTMENT DOWNTOWN 125i

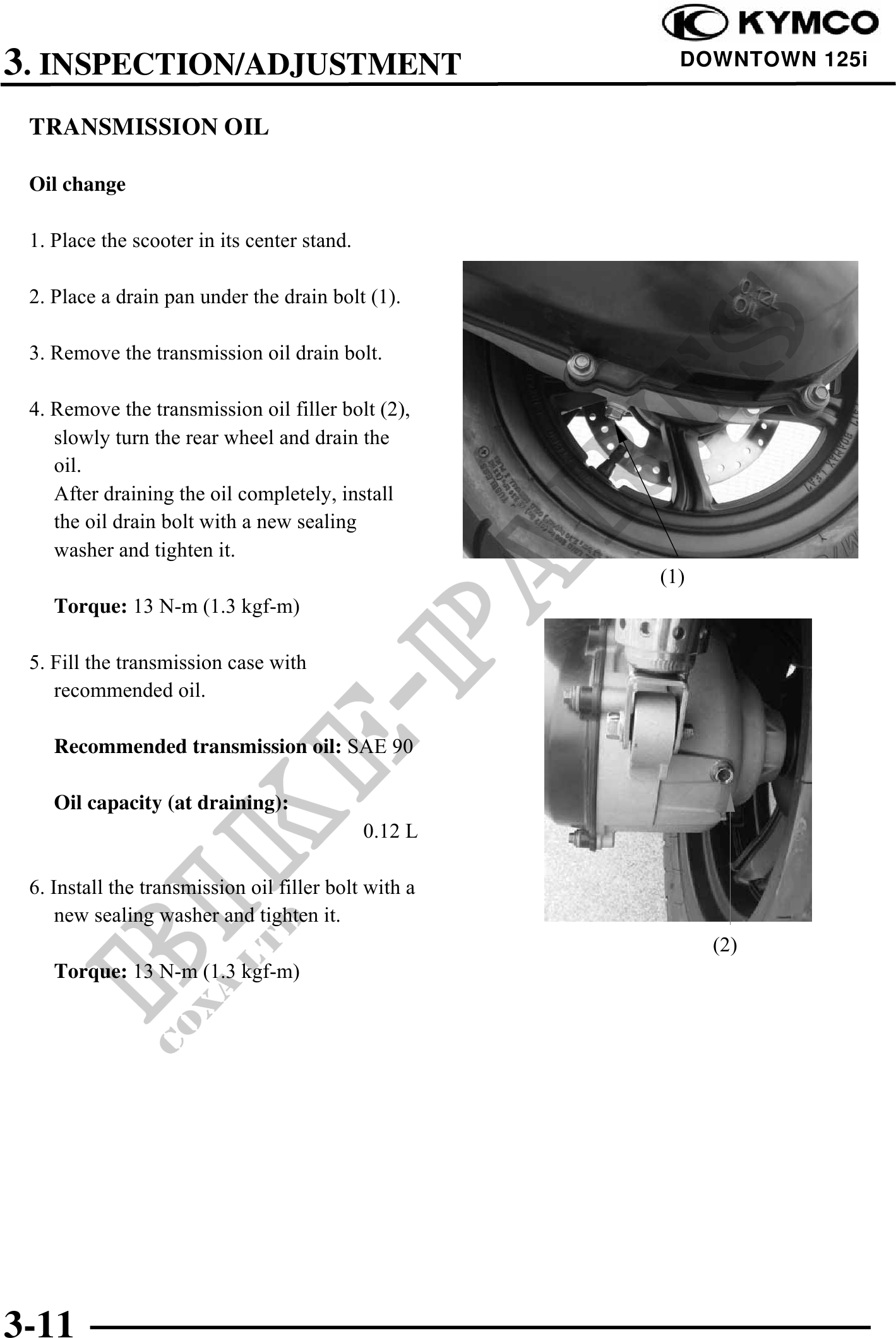

TRANSMISSION OIL
Oil change
1. Place the scooter in its center stand.
2. Place a drain pan under the drain bolt (1).
3. Remove the transmission oil drain bolt.
4. Remove the transmission oil filler bolt (2),
slowly turn the rear wheel and drain the
oil.
After draining the oil completely, install
the oil drain bolt with a new sealing
washer and tighten it.
(1)
Torque: 13 N-m (1.3 kgf-m)
5. Fill the transmission case with
recommended oil.
Recommended transmission oil: SAE 90
Oil capacity (at draining):
0.12 L
6. Install the transmission oil filler bolt with a
new sealing washer and tighten it.
(2)
Torque: 13 N-m (1.3 kgf-m)
3-11
