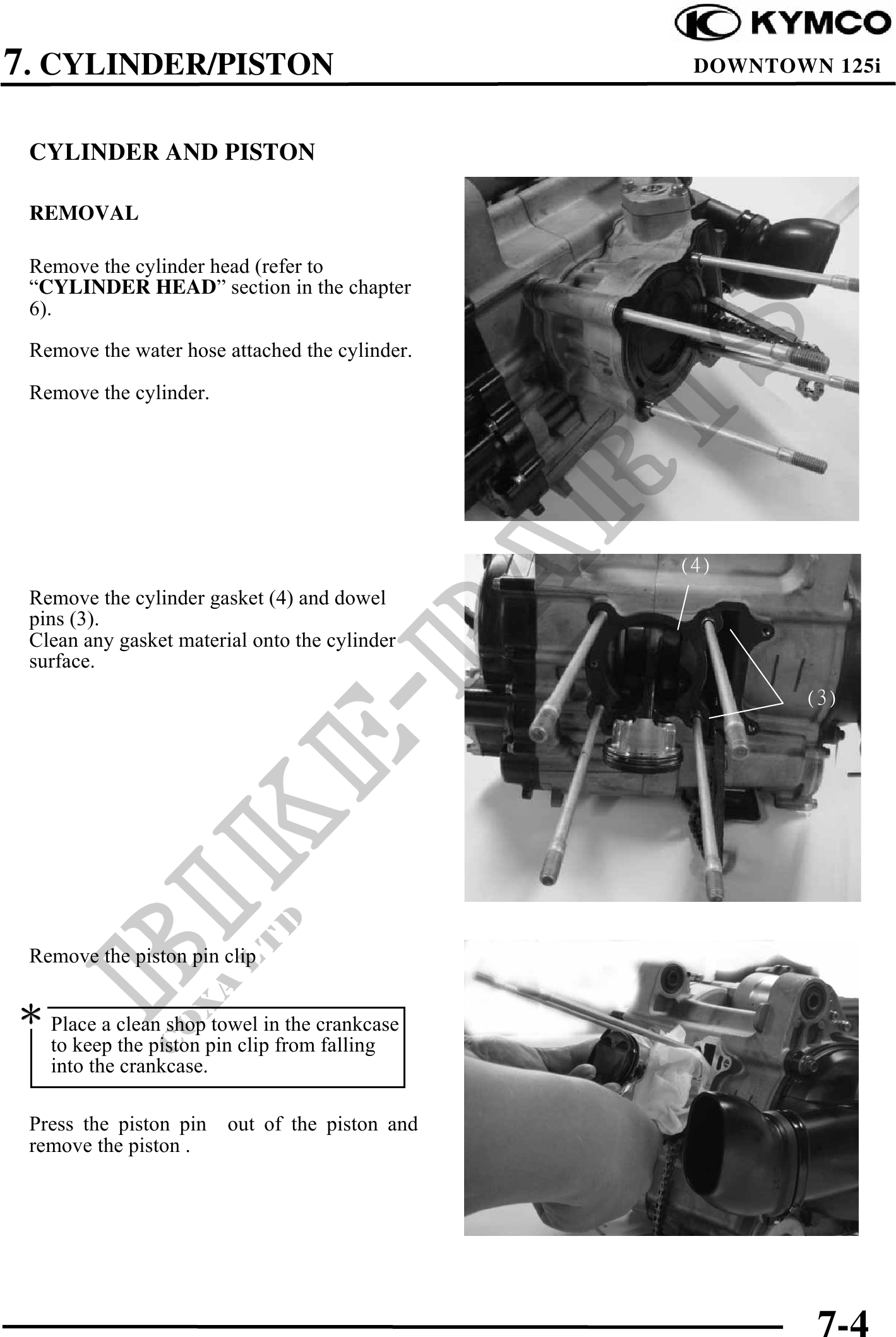

7. CYLINDER/PISTON DOWNTOWN 125i
CYLINDER AND PISTON
REMOVAL
Remove the cylinder head (refer to
"CYLINDER HEAD" section in the chapter
6).
Remove the water hose attached the cylinder.
Remove the two cylinder bolts/washers (2).
Remove the cylinder.
(4)
Remove the cylinder gasket (4) and dowel
pins (3).
Clean any gasket material onto the cylinder
surface.
(3)
Remove the piston pin clip
Place a clean shop towel in the crankcase
to keep the piston pin clip from falling
into the crankcase.
Press the piston pin out of the piston and
remove the piston .
7-4
