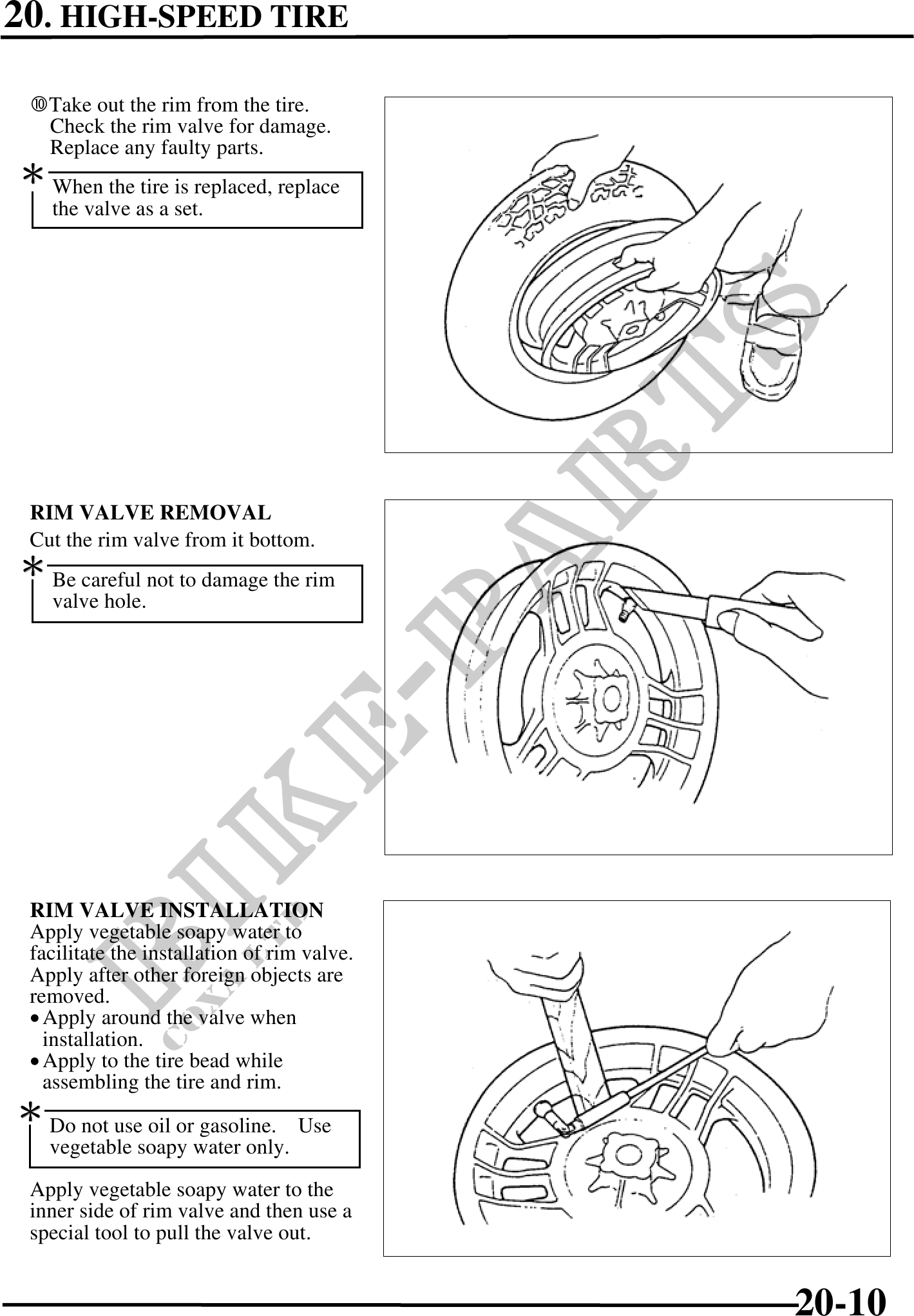

20. HIGH-SPEED TIRE
Take out the rim from the tire.
Check the rim valve for damage.
Replace any faulty parts.
When the tire is replaced, replace
the valve as a set.
RIM VALVE REMOVAL
Cut the rim valve from it bottom.
Be careful not to damage the rim
valve hole.
RIM VALVE INSTALLATION
Apply vegetable soapy water to
facilitate the installation of rim valve.
Apply after other foreign objects are
removed.
· Apply around the valve when
installation.
· Apply to the tire bead while
assembling the tire and rim.
Do not use oil or gasoline. Use
vegetable soapy water only.
Apply vegetable soapy water to the
inner side of rim valve and then use a
special tool to pull the valve out.
20-10
