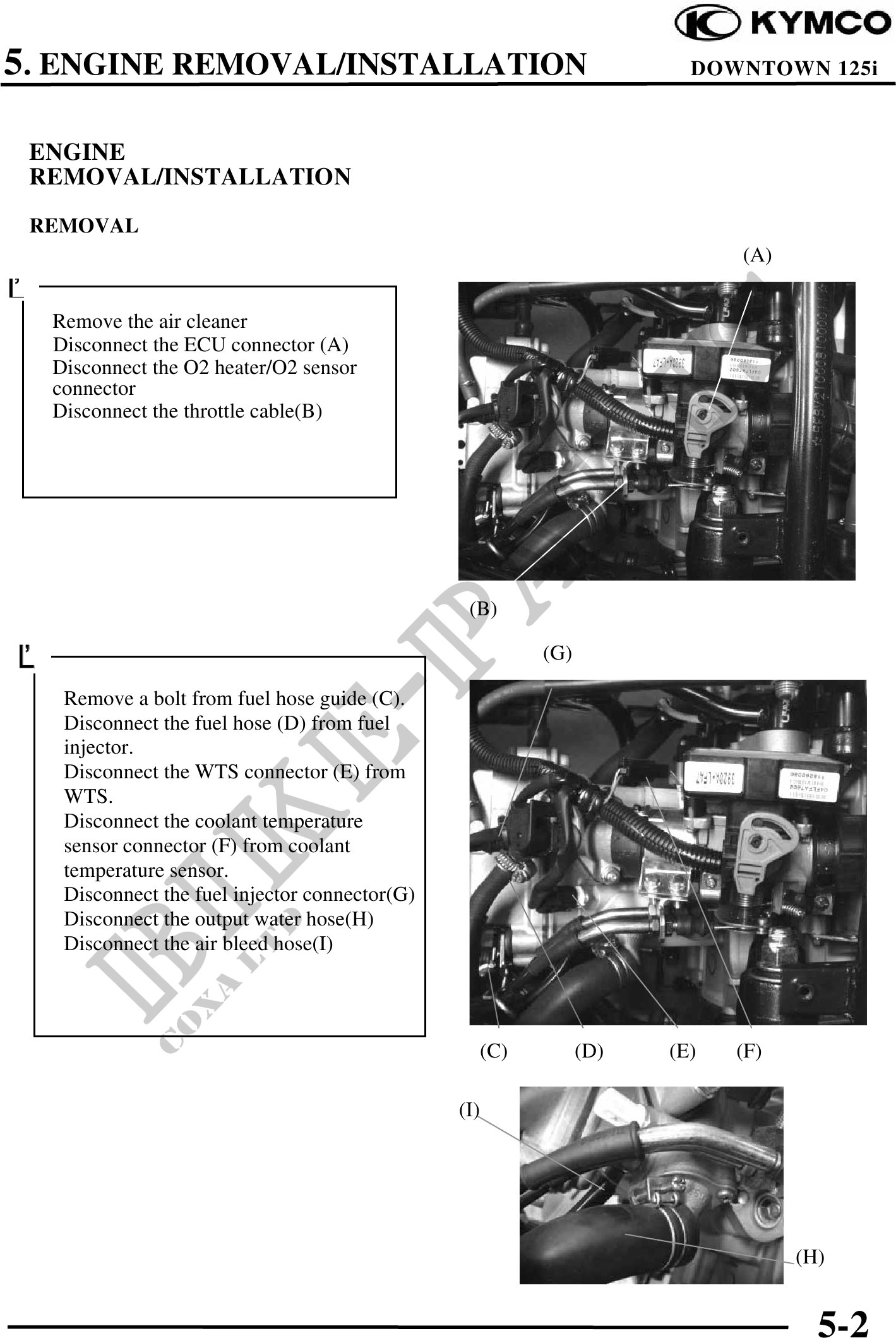

5. ENGINE REMOVAL/INSTALLATION DOWNTOWN 125i
ENGINE
REMOVAL/INSTALLATION
REMOVAL
(A)
Remove the air cleaner
Disconnect the ECU connector (A)
Disconnect the O2 heater/O2 sensor
connector
Disconnect the throttle cable(B)
(B)
(G)
Remove a bolt from fuel hose guide (C).
Disconnect the fuel hose (D) from fuel
injector.
Disconnect the WTS connector (E) from
WTS.
Disconnect the coolant temperature
sensor connector (F) from coolant
temperature sensor.
Disconnect the fuel injector connector(G)
Disconnect the output water hose(H)
Disconnect the air bleed hose(I)
(C) (D) (E) (F)
(I)
(H)
5-2
